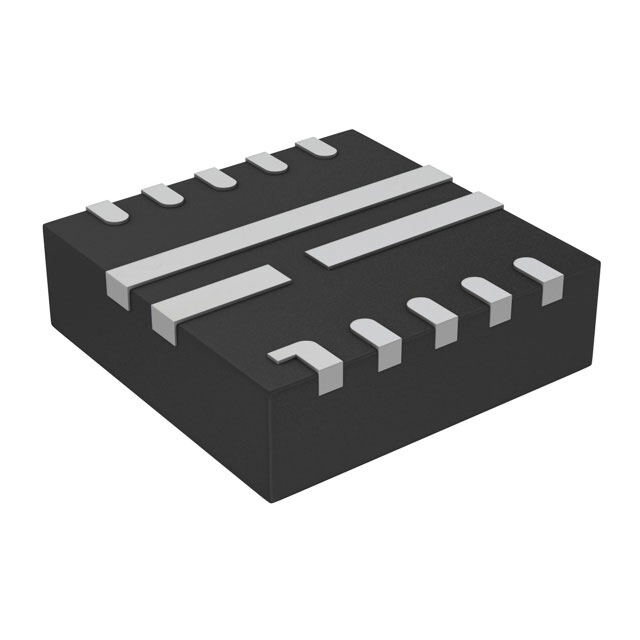

UCD74106RGMR
RoHS
RoHS compliant
RoHS compliantPackage 13-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
UCD74106 Cut Tape (CT) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 3days ago) DC to DC switching regulator 12V 3mm 6A Up to 2MHz
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5344
≥1 USD $2.5344
≥10 USD $2.28008
≥100 USD $2.15072
≥500 USD $1.8326
≥1000 USD $1.720717
≥3000 USD $1.505627
Inventory: 1085
Minimum: 1
-
+
Technical Details
Technical
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Frequency - Switching Up to 2MHz
Topology Buck
Current - Output 6A
Output Configuration Positive
Nominal Supply Current 4mA
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 2.2V
Max Supply Voltage 18V
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Output Voltage 3.3V
Number of Outputs 1
Function Step-Down
Base Part Number UCD74106
Terminal Pitch 0.5mm
Supply Voltage 12V
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Power Management Circuits
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 13
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TJ
Dimensions
Height 1mm
Length 3mm
Width 3mm
Thickness 900μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Number of Pins 13
Package / Case 13-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
