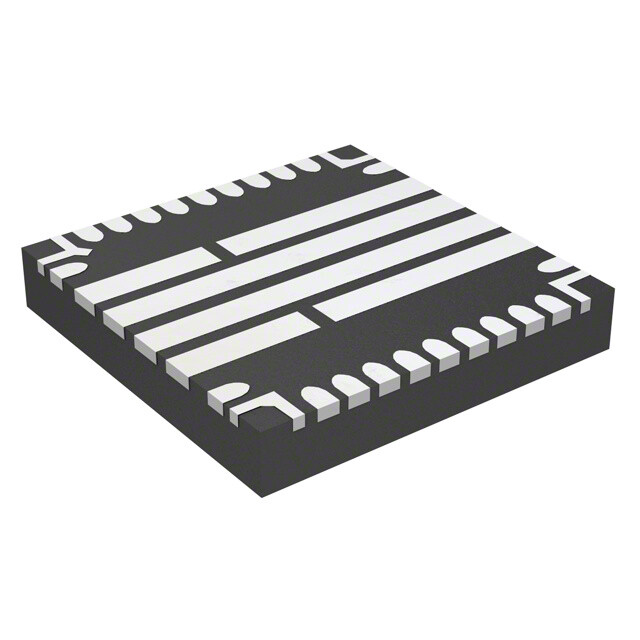

UCD7242RSJR
RoHS
RoHS compliant
RoHS compliantPackage 32-VQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
UCD7242 Tape & Reel (TR) ACTIVE (Last Updated: 1day ago) Active DC to DC switching regulator 12V 6mm 10A 300kHz~2MHz
PDF
/
Buying Options
Total Price: USD $3.94
Unit Price: USD $3.93893
≥1 USD $3.93893
≥10 USD $3.71597
≥100 USD $3.50563
≥500 USD $3.3072
≥1000 USD $3.12
≥3000 USD $2.9434
Inventory: 3108
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 900μm
Width 6mm
Length 6mm
Height 1mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 300kHz~2MHz
Control Mode VOLTAGE-MODE
Topology Buck
Current - Output 10A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 2.2V
Max Supply Voltage 18V
Input Voltage-Nom 12V
Voltage - Input (Min) 4.75V
Number of Outputs 2
Function Step-Down
Base Part Number UCD7242
Terminal Pitch 0.5mm
Supply Voltage 12V
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Power Management Circuits
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 32
Package / Case 32-VQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks
Alternative Model
