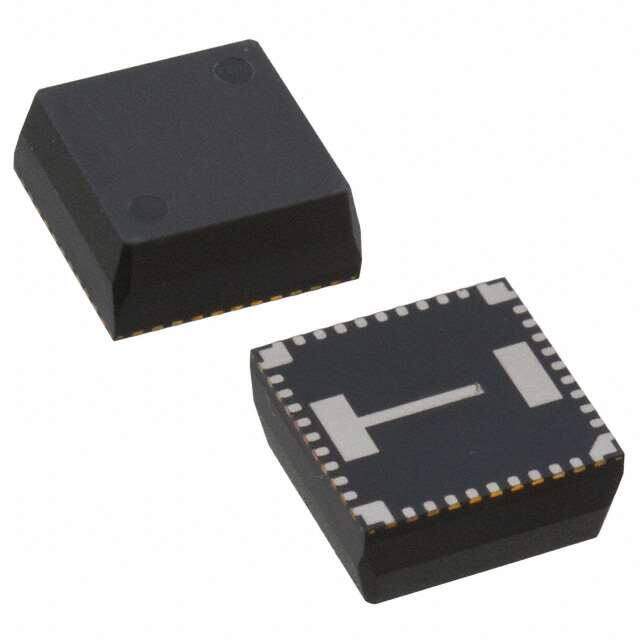

TPS84A20RVQT
RoHS
RoHS compliant
RoHS compliantPackage 42-BQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS84A20 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 3days ago) DC to DC switching regulator 12V 10mm 10A 200kHz~1.2MHz
PDF
/
Buying Options
Total Price: USD $17.84
Unit Price: USD $17.8376
≥1 USD $17.8376
≥10 USD $16.44896
≥100 USD $15.709408
≥500 USD $14.04612
Inventory: 318
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 42-BQFN Exposed Pad
Number of Pins 42
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series Eco-Mode?
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 42
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Switching Regulator or Controllers
Terminal Position QUAD
Peak Reflow Temperature (Cel) 245
Terminal Pitch 0.8mm
Base Part Number TPS84A20
Function Step-Down
Number of Outputs 1
Efficiency 95 %
Voltage - Input (Max) 17V
Output Voltage 5.5V
Output Type Adjustable
Max Output Current 10A
Input Voltage-Nom 12V
Min Supply Voltage 2.95V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Max Output Voltage 5.5V
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 200kHz~1.2MHz
Synchronous Rectifier Yes
Min Output Voltage 600mV
Voltage - Output (Max) 5.5V
Dimensions
Height 4.4mm
Length 10mm
Width 10mm
Thickness 4.3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
