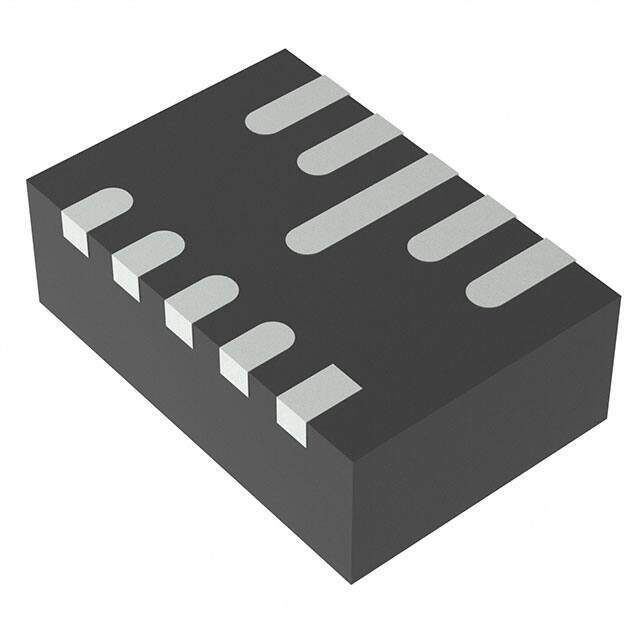

TPS63802DLAT
RoHS
RoHS compliant
RoHS compliantPackage 10-VFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
CURRENT-MODE ROHS3Compliant Adjustable Positive Switching Regulator IC -40C~125C TJ 2.1MHz 2A 2.3V
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.5432
≥1 USD $2.5432
≥10 USD $2.28448
≥100 USD $2.159872
≥500 USD $1.871848
Inventory: 1162
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output (Max) 5.2V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2.1MHz
Control Mode CURRENT-MODE
Topology Buck-Boost
Voltage - Output (Min/Fixed) 1.8V
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 2.3V
Voltage - Input (Min) 1.3V
Output Type Adjustable
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Up/Step-Down
Base Part Number TPS63802
Terminal Form NO LEAD
Terminal Position DUAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 10-VFDFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
