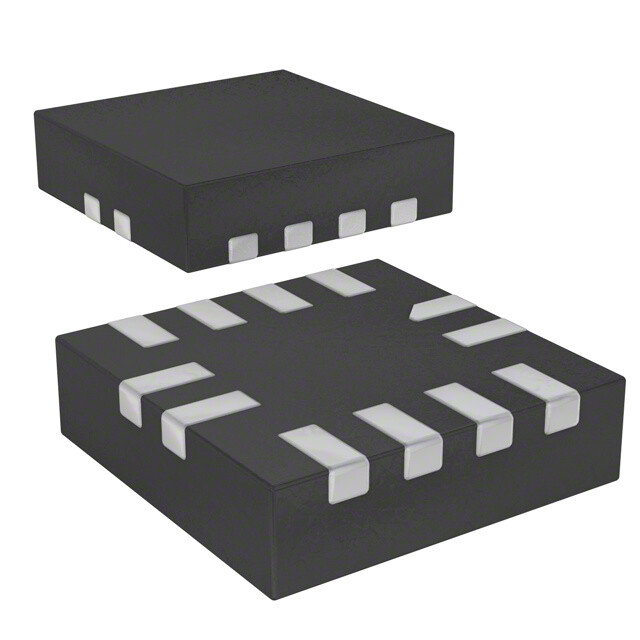

TPS63050RMWT image
Favorite
TPS63050RMWT image
Favorite

TPS63050RMWT

Texas Instruments
RoHS
RoHS RoHS compliant
Package 12-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description TPS63050 Tape & Reel (TR) ACTIVE (Last Updated: 2days ago) Active DC to DC switching regulator 3.6V 2.5mm 500mA 2.5MHz
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.1384
≥1 USD $2.1384
≥10 USD $1.91752
≥100 USD $1.808576
≥500 USD $1.541056
Inventory: 1239
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Thickness 900μm
Width 2.5mm
Length 2.5mm
Height 1mm

Technical

Min Output Voltage 2.5V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2.5MHz
Control Mode CURRENT-MODE
Topology Buck-Boost
Max Output Voltage 5.5V
Quiescent Current 45μA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Operating Supply Voltage 5.5V
Max Output Current 500mA
Output Type Adjustable
Output Voltage 5.5V
Efficiency 95 %
Number of Outputs 1
Function Step-Up/Step-Down
Base Part Number TPS63050
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA

Physical

Number of Pins 12
Package / Case 12-VFQFN
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
