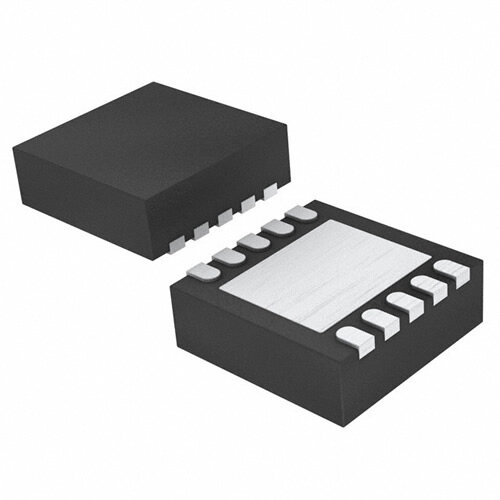

TPS63030DSKRG4
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IC REG BUCK BOOST ADJ 0.9A 10SON
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.736737
≥1 USD $1.736737
≥10 USD $1.638439
≥100 USD $1.545688
≥500 USD $1.458197
≥1000 USD $1.375657
Inventory: 1162
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 2.5mm
Length 2.5mm
Height Seated (Max) 0.8mm
Technical
Switcher Configuration BUCK-BOOST
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Max Input Voltage 5.5V
Frequency - Switching 2.4MHz
Control Mode CURRENT-MODE
Min Input Voltage 1.8V
Voltage - Output 5.5V
Quiescent Current 25μA
Current - Output 800mA
Analog IC - Other Type SWITCHING REGULATOR
Temperature Grade INDUSTRIAL
Input Voltage-Nom 3.6V
Operating Supply Voltage 5.5V
Max Output Current 800mA
Output Type Adjustable
Number of Outputs 1
Pin Count 10
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e4
Packaging Tape & Reel (TR)
Physical
Number of Pins 10
Mount Surface Mount
