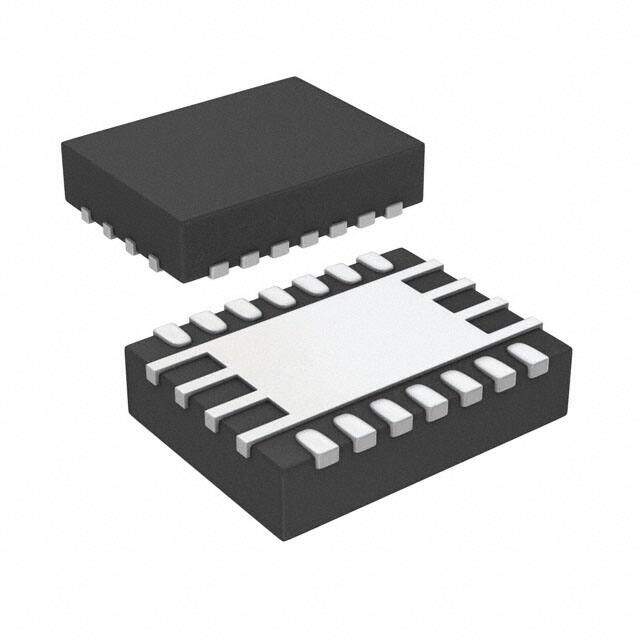

TPS63020DSJT
RoHS
RoHS compliant
RoHS compliantPackage 14-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS63020 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 6days ago) DC to DC switching regulator 3.6V 4mm 3.5A Switch 2.4MHz
PDF
/
Buying Options
Total Price: USD $4.24
Unit Price: USD $4.2416
≥1 USD $4.2416
≥10 USD $3.80776
≥100 USD $3.599552
≥500 USD $3.119688
Inventory: 2457
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 900μm
Width 4mm
Length 3mm
Height 1mm
Technical
Ambient Temperature Range High 85°C
Max Junction Temperature (Tj) 125°C
Min Output Voltage 1.2V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2.4MHz
Control Mode CURRENT-MODE
Topology Buck-Boost
Max Output Voltage 5.5V
Quiescent Current 50μA
Current - Output 3.5A Switch
Output Configuration Positive
Nominal Supply Current 25μA
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 1.8V
Max Supply Voltage 5.5V
Input Voltage-Nom 3.6V
Voltage - Input (Min) 1.8V
Operating Supply Voltage 5.5V
Max Output Current 3A
Output Type Adjustable
Output Voltage 5.5V
Efficiency 96 %
Number of Outputs 1
Function Step-Up/Step-Down
Base Part Number TPS63020
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 14
Package / Case 14-VFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
