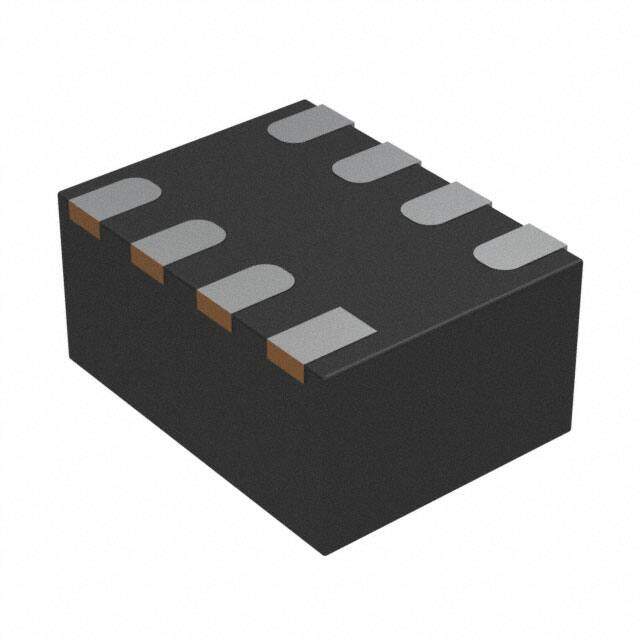

TPS62849DLCR
RoHS
RoHS compliant
RoHS compliantPackage 8-VFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS62849 ALSO OPERATES IN PFM CONTROL TECHNIQUE Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) DC to DC switching regulator 3.6V 2mm 750mA 1.8MHz
PDF
/
Buying Options
Total Price: USD $1.2
Unit Price: USD $1.1968
≥1 USD $1.1968
≥10 USD $1.078
≥100 USD $1.016928
≥500 USD $0.86636
≥1000 USD $0.813472
≥3000 USD $0.716109
Inventory: 1681
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 2mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.8MHz
Topology Buck
Voltage - Output (Min/Fixed) 3.4V
Current - Output 750mA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 1.8V
Output Type Fixed
Output Voltage 3.4V
Voltage - Input (Max) 6.5V
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PDSO-N8
Base Part Number TPS62849
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 8-VFDFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
