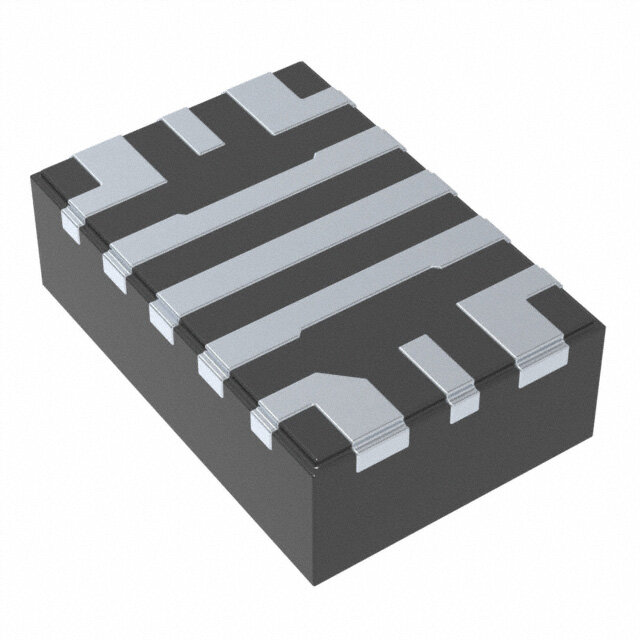

TPS62812QWRWYRQ1
RoHS
RoHS compliant
RoHS compliantPackage 9-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
PS62812 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 5V 2mm 2A 1.8MHz~4MHz
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0944
≥1 USD $2.0944
≥10 USD $1.88408
≥100 USD $1.7776
≥500 USD $1.51448
≥1000 USD $1.42208
≥3000 USD $1.24432
Inventory: 1108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount, Wettable Flank
Package / Case 9-VFQFN
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 9
Terminal Finish Matte Tin (Sn)
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PS62812
JESD-30 Code R-PQCC-N9
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 6V
Output Type Adjustable
Voltage - Input (Min) 2.75V
Input Voltage-Nom 5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 2A
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 1.8MHz~4MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 5.5V
Dimensions
Length 3mm
Width 2mm
Compliance
RoHS Status ROHS3 Compliant
