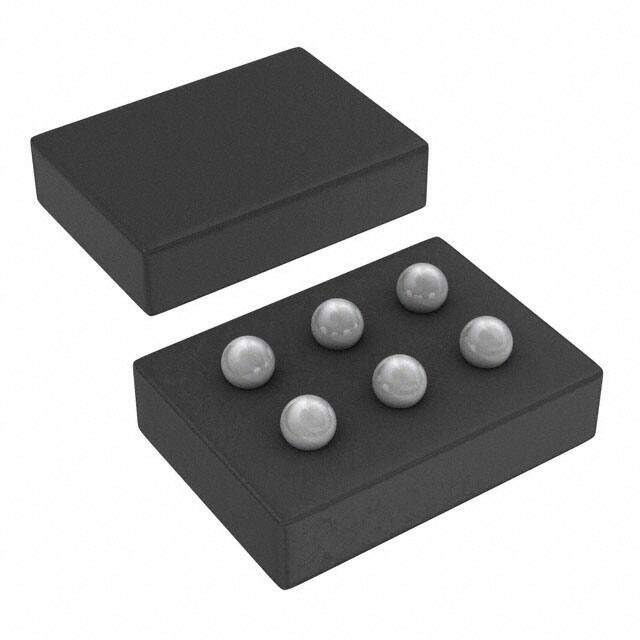

TPS62693YFDR image
Favorite
TPS62693YFDR image
Favorite

TPS62693YFDR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 6-XFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description TPS62693 ALSO OPERATES IN PFM CONTROL TECHNIQUE Cut Tape (CT) Tin/Silver/Copper (Sn/Ag/Cu) DC to DC switching regulator 3.6V 0m 800mA 3MHz
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 1634
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Thickness 178μm
Width 0m
Length 0m
Height 400μm

Technical

Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 3MHz
Control Mode VOLTAGE-MODE
Topology Buck
Quiescent Current 19μA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 2.3V
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.3V
Max Output Current 800mA
Output Type Fixed
Output Voltage 2.85V
Voltage - Input (Max) 4.8V
Efficiency 95 %
Number of Outputs 1
Function Step-Down
Base Part Number TPS62693
Terminal Pitch 0.4mm
Terminal Form BALL
Terminal Position BOTTOM
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e1
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C TA

Physical

Number of Pins 6
Package / Case 6-XFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
