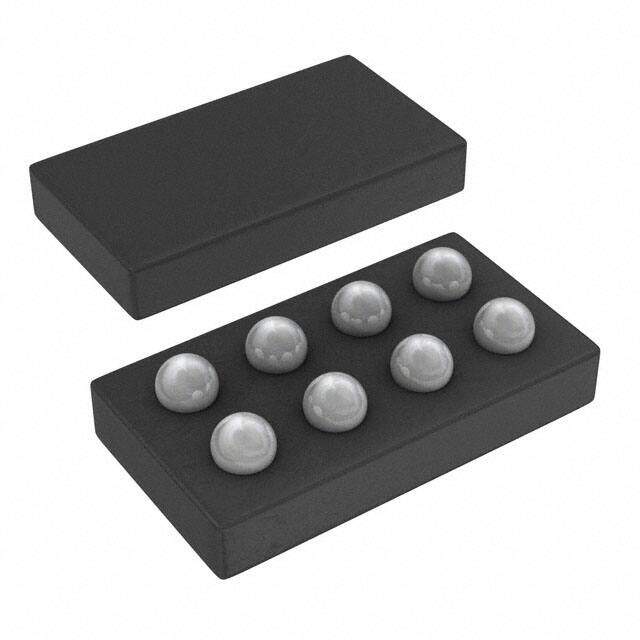

TPS62320YEDR
RoHS
/
Package 8-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS62320 Tape & Reel (TR) Obsolete Step-Down DC to DC switching regulator 3.6V 2.25mm 500mA 3MHz
PDF
/
Inventory: 6589
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-UFBGA, DSBGA
Number of Pins 8
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Subcategory Switching Regulator or Controllers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Terminal Pitch 0.5mm
Base Part Number TPS62320
Function Step-Down
Number of Outputs 1
Efficiency 93 %
Voltage - Input (Max) 6V
Output Voltage 5.4V
Output Type Adjustable
Max Output Current 500mA
Operating Supply Voltage 6V
Voltage - Input (Min) 2.7V
Input Voltage-Nom 3.6V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Quiescent Current 86μA
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 3MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Dimensions
Height Seated (Max) 0.625mm
Length 2.25mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Alternative Model
