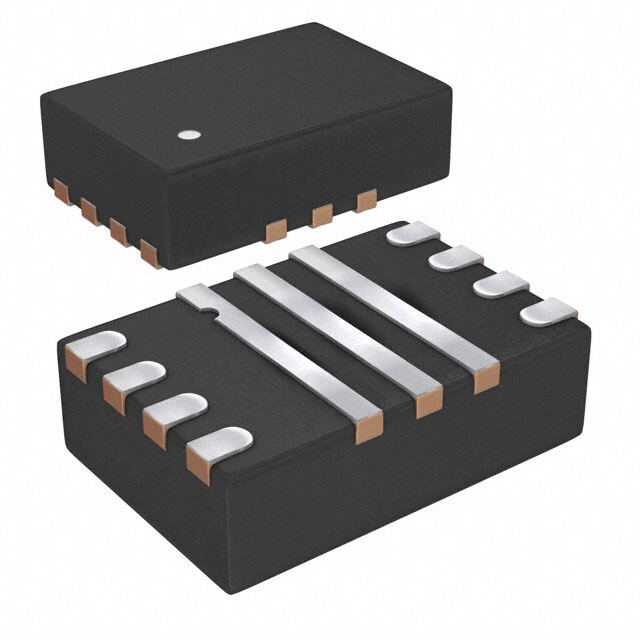

TPS62148RGXT
RoHS
RoHS compliant
RoHS compliantPackage 11-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS62148 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) Active DC to DC switching regulator 12V 2mm 2A 2.5MHz
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7952
≥1 USD $1.7952
≥10 USD $1.61128
≥100 USD $1.519936
≥500 USD $1.29492
Inventory: 1198
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 3mm
Technical
Voltage - Output (Max) 12V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2.5MHz
Control Mode CURRENT/VOLTAGE-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 3V
Output Type Adjustable
Voltage - Input (Max) 17V
Number of Outputs 1
Function Step-Down
Base Part Number TPS62148
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position BOTTOM
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DCS-Control?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 11-VFQFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
