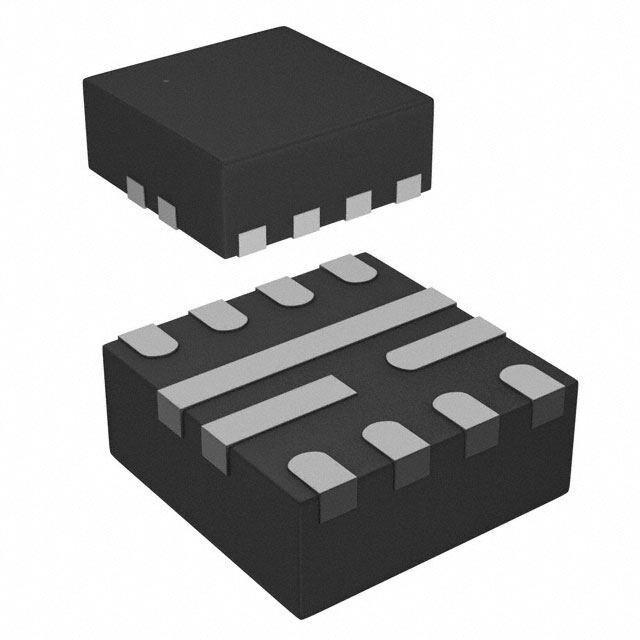

TPS6209733RWKT
RoHS
RoHS compliant
RoHS compliantPackage 11-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS6209733 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 3days ago) DC to DC switching regulator 3.3V 2mm 2A 1.5MHz~2.5MHz
PDF
/
Buying Options
Total Price: USD $1.95
Unit Price: USD $1.9536
≥1 USD $1.9536
≥10 USD $1.75208
≥100 USD $1.652992
≥500 USD $1.408528
Inventory: 693
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 900μm
Width 2mm
Length 2mm
Height 1mm
Technical
Nominal Output Voltage 3.3V
Min Output Voltage 3.3V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.5MHz~2.5MHz
Topology Buck
Quiescent Current 40μA
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.5V
Output Type Fixed
Output Voltage 3.3V
Voltage - Input (Max) 6V
Number of Outputs 1
Function Step-Down
Base Part Number TPS6209733
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series iDCS-Control
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 11
Package / Case 11-VFQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
