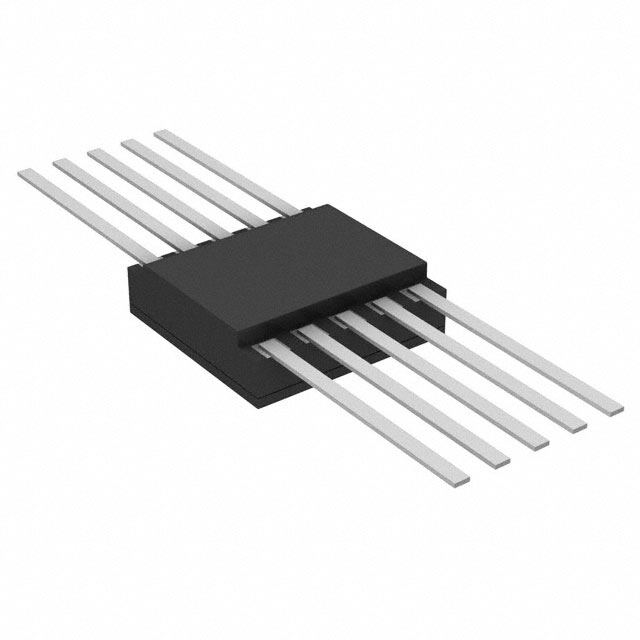

TPS62000SHKK
RoHS
/
Package 10-CDFF
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS62000 Tube ACTIVE (Last Updated: 2days ago) Active DC to DC switching regulator 3.6V 6.35mm 300mA 750kHz
PDF
/
Buying Options
Total Price: USD $143.23
Unit Price: USD $143.2288
≥1 USD $143.2288
≥10 USD $137.17704
≥100 USD $134.151072
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 2.03mm
Width 6.35mm
Length 6.35mm
Height 2.31mm
Technical
Min Output Voltage 800mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 750kHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Max Output Voltage 5.5V
Quiescent Current 50μA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2V
Operating Supply Voltage 5.5V
Max Output Current 300mA
Output Type Adjustable
Output Voltage 5.5V
Efficiency 85 %
Number of Outputs 1
Function Step-Down
Base Part Number TPS62000
Supply Voltage 3.6V
Terminal Form FLAT
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Operating Temperature -55°C~210°C TA
Physical
Number of Pins 10
Package / Case 10-CDFF
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
