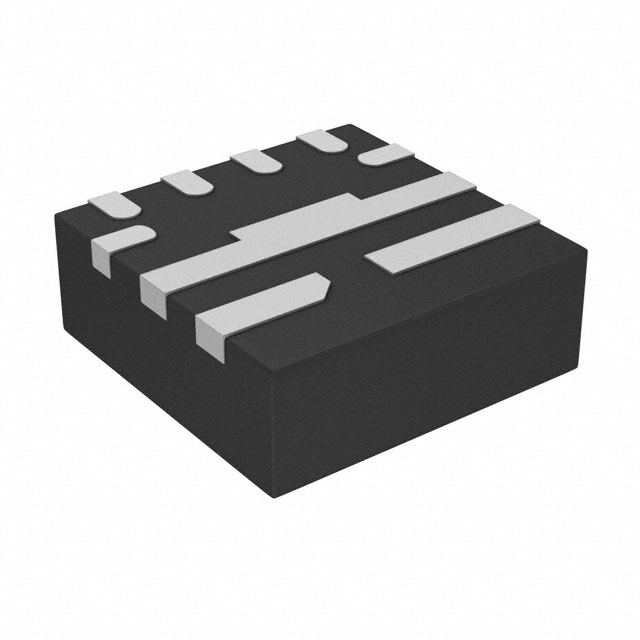

TPS61235PRWLT
RoHS
RoHS compliant
RoHS compliantPackage 9-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS61235 ALSO OPERATES IN PFM CONTROL TECHNIQUE Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) DC to DC switching regulator 3.6V 2.5mm 6.5A Switch 1MHz
PDF
/
Buying Options
Total Price: USD $1.67
Unit Price: USD $1.672
≥1 USD $1.672
≥10 USD $1.5004
≥100 USD $1.41504
≥500 USD $1.205688
Inventory: 1630
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 900μm
Width 2.5mm
Length 2.5mm
Height 1mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1MHz
Control Mode CURRENT/VOLTAGE-MODE
Topology Boost
Voltage - Output (Min/Fixed) 5.1V
Quiescent Current 10μA
Current - Output 6.5A Switch
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.3V
Output Type Fixed
Output Voltage 5.1V
Voltage - Input (Max) 4.5V
Number of Outputs 1
Function Step-Up
Base Part Number TPS61235
Terminal Form NO LEAD
Terminal Position BOTTOM
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 9
Surface Mount YES
Package / Case 9-VFQFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
