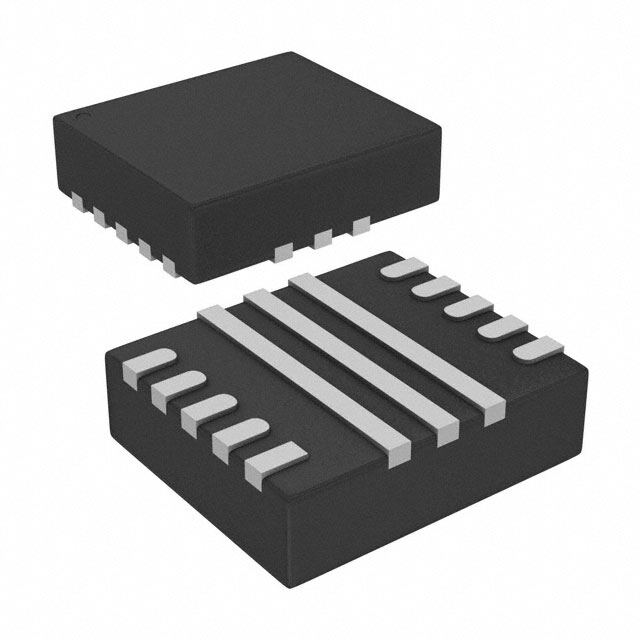

TPS611781RNWT
RoHS
RoHS compliant
RoHS compliantPackage 13-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS61181 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 3days ago) DC to DC switching regulator 6V 3mm 10A Switch 2.2MHz
PDF
/
Buying Options
Total Price: USD $4.98
Unit Price: USD $4.9808
≥1 USD $4.9808
≥10 USD $4.47392
≥100 USD $4.229632
≥500 USD $3.66564
Inventory: 368
Minimum: 1
-
+
Technical Details
Technical
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Frequency - Switching 2.2MHz
Control Mode CURRENT-MODE
Topology Boost
Voltage - Output (Min/Fixed) 4.5V
Current - Output 10A Switch
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 6V
Voltage - Input (Min) 2.7V
Output Type Adjustable
Output Voltage 20V
Number of Outputs 1
Function Step-Up
Base Part Number TPS61181
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position BOTTOM
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 13
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Dimensions
Height 1mm
Length 3.5mm
Width 3mm
Thickness 900μm
Compliance
RoHS Status ROHS3 Compliant
Physical
Number of Pins 13
Surface Mount YES
Package / Case 13-PowerVFQFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
