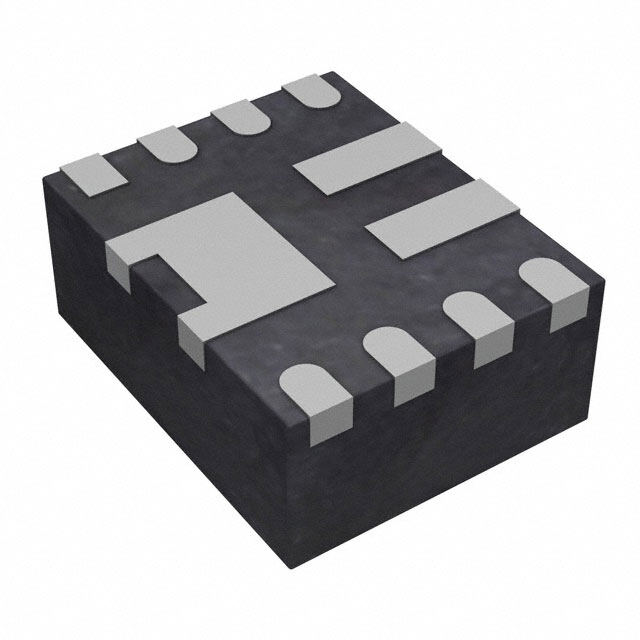

TPS61089RNRR
RoHS
RoHS compliant
RoHS compliantPackage 11-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS61089 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 5days ago) DC to DC switching regulator 3.3V 2mm 7A 200kHz~2.2MHz
PDF
/
Buying Options
Total Price: USD $2.31
Unit Price: USD $2.3056
≥1 USD $2.3056
≥10 USD $2.0724
≥100 USD $1.95536
≥500 USD $1.665928
≥1000 USD $1.564288
≥3000 USD $1.368752
Inventory: 1162
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 900μm
Width 2mm
Length 2.5mm
Height 1mm
Technical
Max Junction Temperature (Tj) 125°C
Max Duty Cycle 90 %
Min Output Voltage 4.5V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 200kHz~2.2MHz
Control Mode CURRENT-MODE
Topology Boost
Max Output Voltage 12.6V
Quiescent Current 10μA
Current - Output 7A
Output Configuration Positive
Nominal Supply Current 10μA
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 2.7V
Max Supply Voltage 12V
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.7V
Output Type Adjustable
Output Voltage 9V
Voltage - Input (Max) 12V
Number of Outputs 1
Function Step-Up
Base Part Number TPS61089
Terminal Pitch 0.5mm
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 11
Package / Case 11-VFQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 8 Weeks
