TPS61029QDPNRQ1
RoHS
RoHS compliant

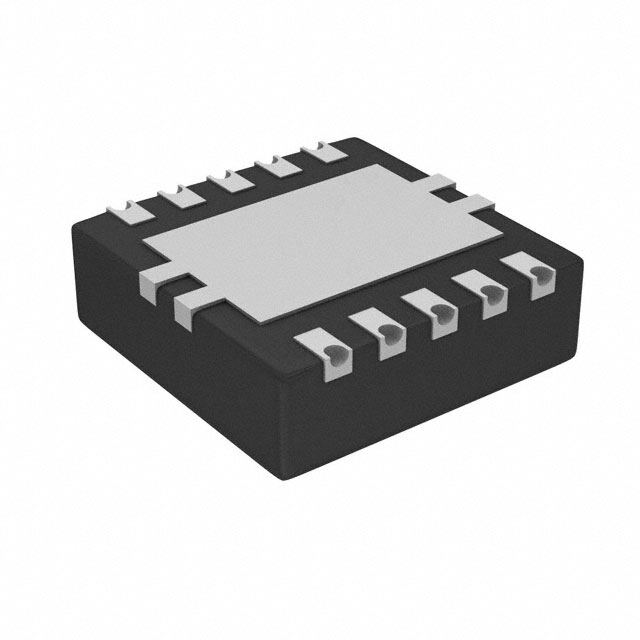

RoHS compliantPackage 10-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS61029 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 2days ago) DC to DC switching regulator 5.5V 3mm 1.8A Switch 600kHz
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 1251
Minimum: 1
-
+
Technical Details
Physical
Number of Pins 10
Weight 29.993795mg
Package / Case 10-VFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position DUAL
Terminal Form NO LEAD
Terminal Pitch 0.5mm
Base Part Number TPS61029
Function Step-Up
Number of Outputs 1
Output Type Adjustable
Voltage - Input (Min) 0.9V
Analog IC - Other Type BATTERY CHARGE CONTROLLER
Output Configuration Positive
Current - Output 1.8A Switch
Quiescent Current 25μA
Max Output Voltage 5.5V
Voltage - Output (Min/Fixed) 1.8V
Topology Boost
Control Mode CURRENT-MODE
Frequency - Switching 600kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 1.8V
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 12 Weeks
Dimensions
Height 1mm
Length 3mm
Width 3mm
Thickness 900μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
