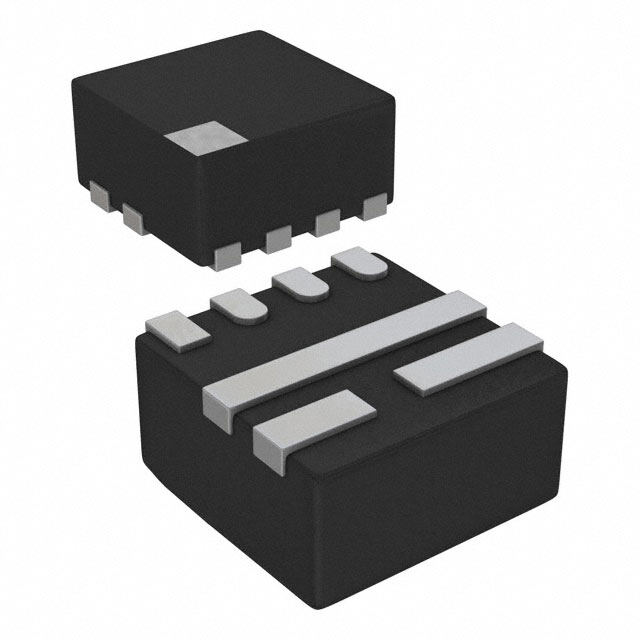

TPS61022RWUT
RoHS
RoHS compliant
RoHS compliantPackage 7-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS61022 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) Active DC to DC switching regulator 3.6V 2mm 600kHz 1MHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.892
≥1 USD $1.892
≥10 USD $1.6984
≥100 USD $1.601952
≥500 USD $1.364968
Inventory: 8757
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 2mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 600kHz 1MHz
Control Mode CURRENT-MODE
Topology Boost
Voltage - Output (Min/Fixed) 2.2V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 0.5V
Output Type Adjustable
Output Voltage 5V
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Up
JESD-30 Code S-PDSO-N7
Base Part Number TPS61022
Terminal Form NO LEAD
Terminal Position DUAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 7
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 7-VFQFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
