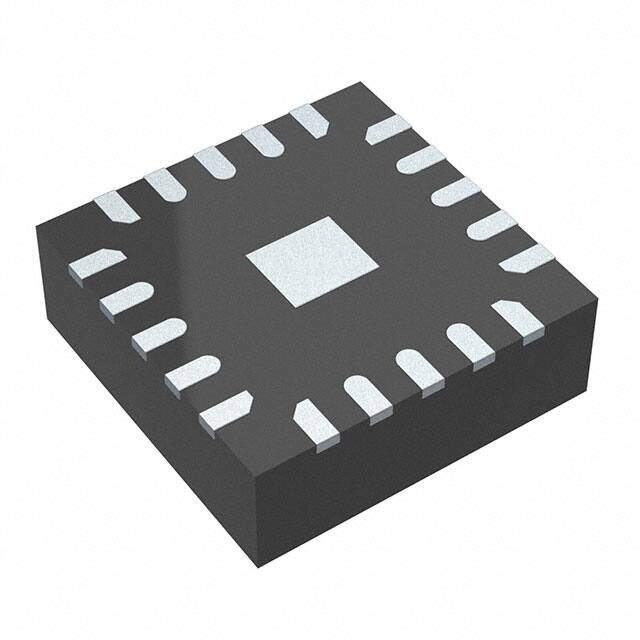

TPS568230RJET image
Favorite
TPS568230RJET image
Favorite

TPS568230RJET

Texas Instruments
RoHS
RoHS RoHS compliant
Package 20-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description TPS568230 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) Active DC to DC switching regulator 12V 3mm 8A 600kHz 800kHz 1MHz
PDF
/
Buying Options
Total Price: USD $2.93
Unit Price: USD $2.9304
≥1 USD $2.9304
≥10 USD $2.63384
≥100 USD $2.489696
≥500 USD $2.15776
Inventory: 847
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 3mm
Length 3mm

Technical

Voltage - Output (Max) 7V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 600kHz 800kHz 1MHz
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 8A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Output Type Adjustable
Voltage - Input (Max) 18V
Number of Outputs 1
Function Step-Down
JESD-30 Code S-PQCC-N20
Base Part Number TPS568230
Reach Compliance Code compliant
Terminal Pitch 0.45mm
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 20
Moisture Sensitivity Level (MSL) 2
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ

Physical

Surface Mount YES
Package / Case 20-VFQFN Exposed Pad
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
