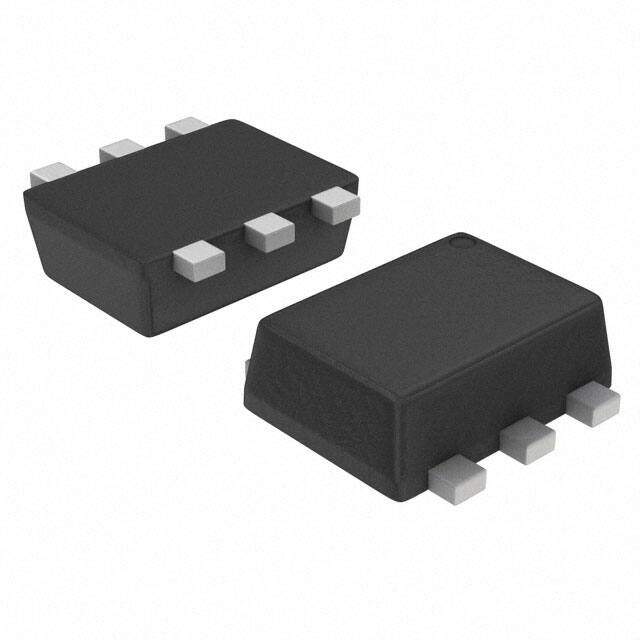

TPS563231DRLR
RoHS
RoHS compliant
RoHS compliantPackage SOT-563, SOT-666
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS563231 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 12V 0.6mm 3A 600kHz
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.43296
≥100 USD $0.404448
≥500 USD $0.323488
≥1000 USD $0.300397
≥3000 USD $0.254197
Inventory: 1601
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.6mm
Technical
Voltage - Output (Max) 7V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 600kHz
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 3A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Output Type Adjustable
Voltage - Input (Max) 17V
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PDSO-N6
Base Part Number TPS563231
Terminal Pitch 0.5mm
Terminal Form NO LEAD
Terminal Position DUAL
Terminal Finish Matte Tin (Sn)
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case SOT-563, SOT-666
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
