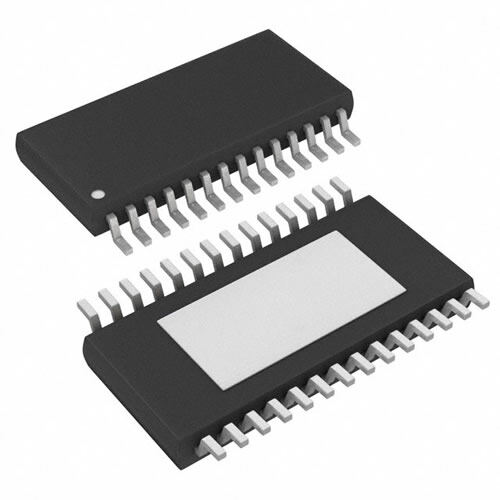

TPS54980PWPG4
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
VOLTAGE-MODE RoHS Compliant Adjustable DUAL Switching Regulator IC 70C 350kHz 9A 4.4mm
PDF
/
Buying Options
Total Price: USD $9.12
Unit Price: USD $9.118493
≥1 USD $9.118493
≥10 USD $8.602348
≥100 USD $8.115426
≥500 USD $7.656059
≥1000 USD $7.222698
Inventory: 3667
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Number of Pins 28
Weight 118.501007mg
Technical
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 2
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 28
Number of Outputs 1
Qualification Status Not Qualified
Output Type Adjustable
Max Output Current 9A
Operating Supply Voltage 4V
Temperature Grade COMMERCIAL
Analog IC - Other Type SWITCHING REGULATOR
Current - Output 9A
Quiescent Current 11mA
Voltage - Output 2.5V
Min Input Voltage 3V
Control Mode VOLTAGE-MODE
Frequency - Switching 350kHz
Max Input Voltage 4V
Synchronous Rectifier Yes
Dimensions
Length 9.7mm
Width 4.4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
