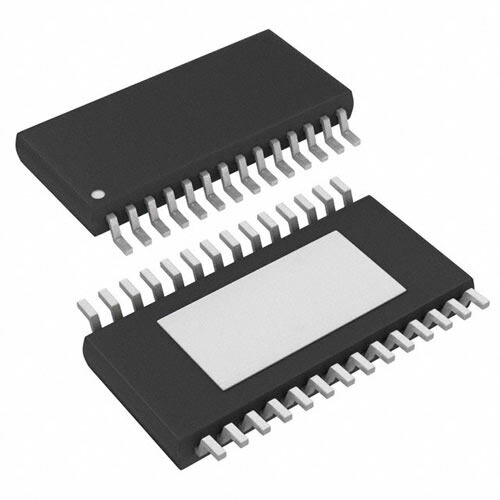

TPS54973PWPRG4
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) SWITCHING REGULATOR Lead Free DC to DC switching regulator 3.3V 4.4mm 9A 550kHz
PDF
/
Buying Options
Total Price: USD $5.06
Unit Price: USD $5.0597
≥1 USD $5.0597
≥10 USD $4.1515
≥100 USD $4.02135
≥500 USD $3.89215
≥1000 USD $3.762
Inventory: 1168
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Number of Pins 28
Weight 118.501007mg
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 2
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 28
Number of Outputs 1
Qualification Status Not Qualified
Output Type Adjustable
Max Output Current 9A
Operating Supply Voltage 4V
Input Voltage-Nom 3.3V
Temperature Grade INDUSTRIAL
Analog IC - Other Type SWITCHING REGULATOR
Current - Output 9A
Quiescent Current 11mA
Voltage - Output 2.5V
Min Input Voltage 3V
Control Mode VOLTAGE-MODE
Frequency - Switching 550kHz
Max Input Voltage 4V
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Switcher Configuration BUCK
Dimensions
Length 9.7mm
Width 4.4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
