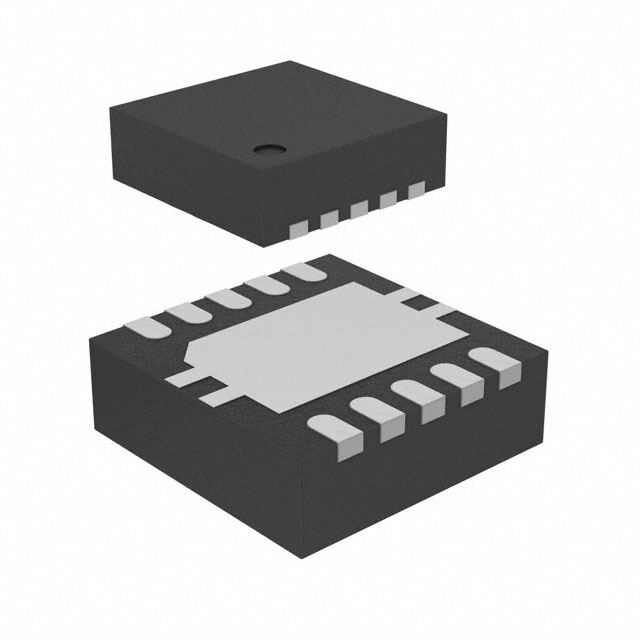

TPS54336ADRCR
RoHS
RoHS compliant
RoHS compliantPackage 10-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS54336 Tape & Reel (TR) ACTIVE (Last Updated: 5days ago) Active DC to DC switching regulator 12V 3mm 3A 340kHz
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6104
≥1 USD $1.6104
≥10 USD $1.44584
≥100 USD $1.363648
≥500 USD $1.161776
≥1000 USD $1.090918
≥3000 USD $0.960291
Inventory: 1126
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 900μm
Width 3mm
Length 3mm
Height 1mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 340kHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Quiescent Current 600μA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Operating Supply Voltage 28V
Max Output Current 3A
Output Type Adjustable
Output Voltage 24V
Voltage - Input (Max) 28V
Number of Outputs 1
Function Step-Down
Base Part Number TPS54336
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Number of Terminations 10
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 10
Package / Case 10-VFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
Alternative Model
