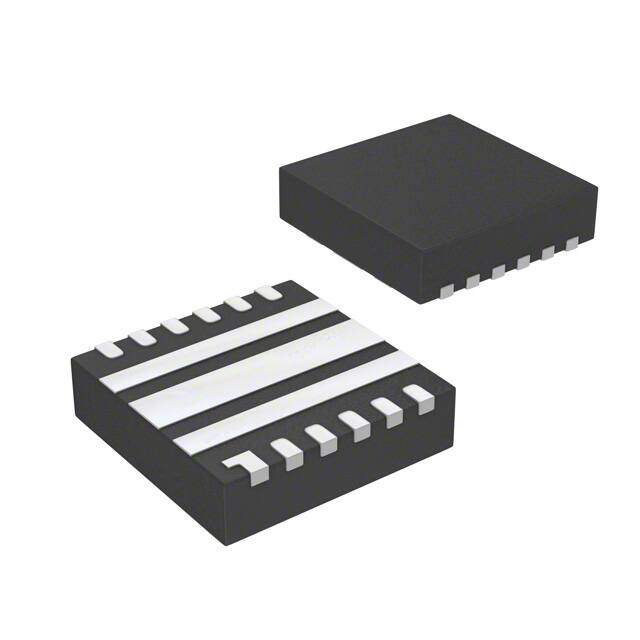

TPS54020RUWT
RoHS
/
Package 15-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
TPS54020 Tape & Reel (TR) ACTIVE (Last Updated: 1week ago) Active DC to DC switching regulator 12V 3.5mm 10A 200kHz~1.2MHz
PDF
/
Buying Options
Total Price: USD $7.75
Unit Price: USD $7.7528
≥1 USD $7.7528
≥10 USD $7.00128
≥100 USD $6.676032
≥500 USD $5.796648
Inventory: 1136
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 900μm
Width 3.5mm
Length 3.5mm
Height 1mm
Technical
Min Output Voltage 600mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 200kHz~1.2MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Max Output Voltage 5V
Quiescent Current 600μA
Output Configuration Positive
Operating Supply Current 600μA
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 4.5V
Input Voltage-Nom 12V
Max Output Current 10A
Output Type Adjustable
Output Voltage 5V
Voltage - Input (Max) 17V
Number of Outputs 1
Function Step-Down
Base Part Number TPS54020
Peak Reflow Temperature (Cel) 260
Terminal Position UNSPECIFIED
ECCN Code EAR99
Number of Terminations 15
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SWIFT?, Eco-Mode?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TA
Physical
Number of Pins 15
Package / Case 15-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
Alternative Model
