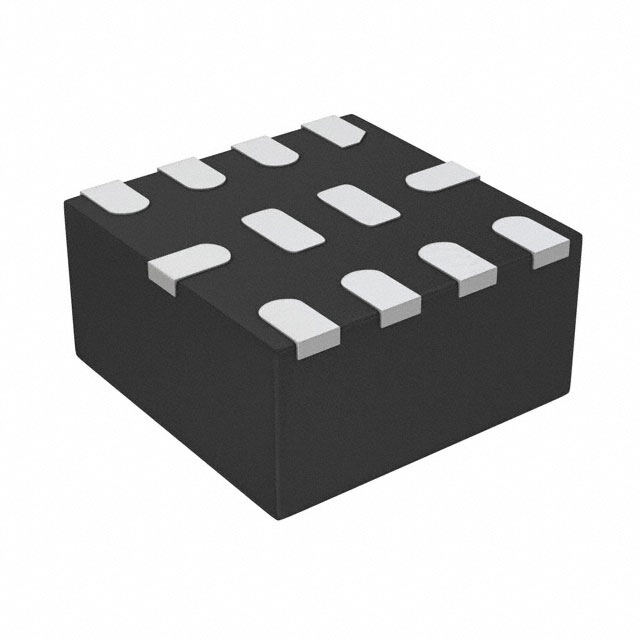

TLV62585RWTR
RoHS
RoHS compliant
RoHS compliantPackage 12-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LV62585 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 4days ago) DC to DC switching regulator 5V 2mm 3A 1.5MHz
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.21255
≥1 USD $2.21255
≥10 USD $1.81545
≥100 USD $1.75845
≥500 USD $1.70145
≥1000 USD $1.6454
Inventory: 59503
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 900μm
Width 2mm
Length 2mm
Height 1mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.5MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 3A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 5V
Voltage - Input (Min) 2.5V
Output Type Adjustable
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Down
Base Part Number LV62585
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position BOTTOM
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 12
Surface Mount YES
Package / Case 12-PowerVFQFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 12 Weeks
