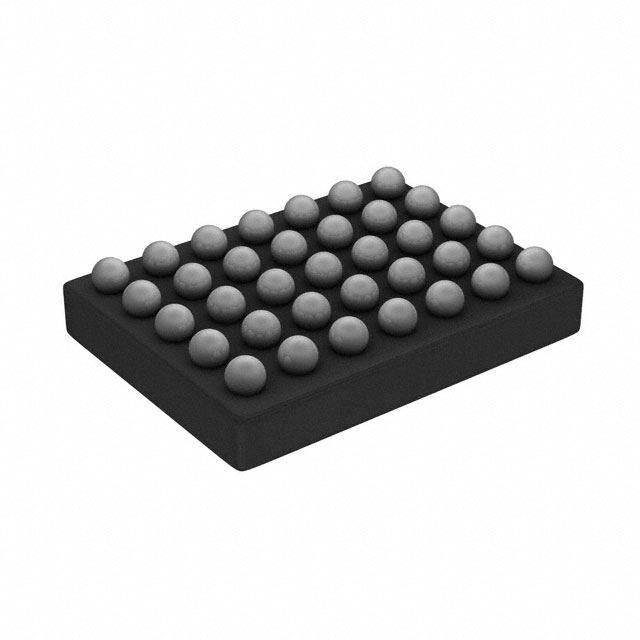

LP8758A1E0YFFR
RoHS
RoHS compliant
RoHS compliantPackage 35-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LP8758A1 ALSO OPERATES IN PFM CONTROL TECHNIQUE; OUTPUT IN ADJUSTABLE MODE IS 0.5TO 3.36V Tape & Reel (TR) Tin/Silver/Copper (Sn/Ag/Cu) DC to DC switching regulator 3.7V 0m 4A 3.3MHz
PDF
/
Buying Options
Total Price: USD $5.13
Unit Price: USD $5.1304
≥1 USD $5.1304
≥10 USD $4.6068
≥100 USD $4.355648
≥500 USD $3.774848
≥1000 USD $3.581248
≥3000 USD $3.213443
Inventory: 1522
Minimum: 1
-
+
Technical Details
Dimensions
Length 0m
Width 0m
Thickness 400μm
Height 625μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Technical
Min Output Voltage 500mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 3.3MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.5V
Max Output Voltage 3.36V
Quiescent Current 6μA
Current - Output 4A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.7V
Voltage - Input (Min) 2.5V
Output Type Programmable
Output Voltage 1V
Voltage - Input (Max) 5.5V
Number of Outputs 4
Function Step-Down
Base Part Number LP8758A1
Terminal Form BALL
Terminal Position BOTTOM
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE; OUTPUT IN ADJUSTABLE MODE IS 0.5 TO 3.36V
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 35
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 35
Package / Case 35-UFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
