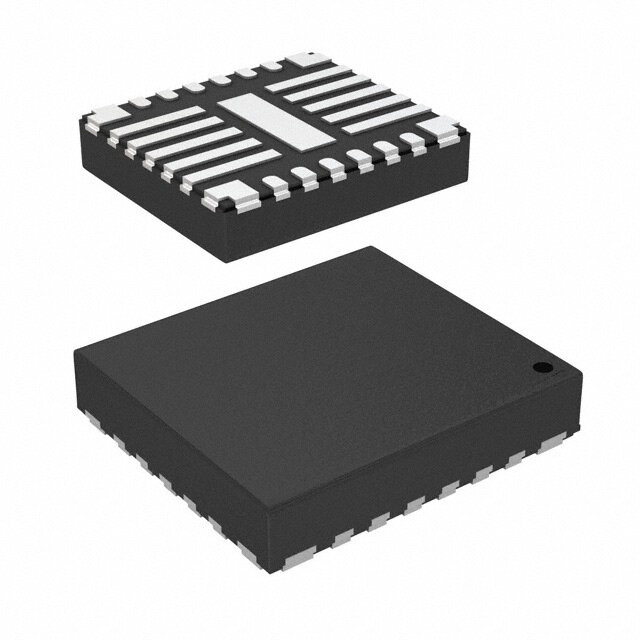

LP875640RNFTQ1 image
Favorite
LP875640RNFTQ1 image
Favorite

LP875640RNFTQ1

Texas Instruments
RoHS
RoHS RoHS compliant
Package 26-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description LP875640 Cut Tape (CT) Matte Tin (Sn) Active DC to DC switching regulator 3.7V 0.9mm 16A 2MHz
PDF
/
Buying Options
Total Price: USD $6.76
Unit Price: USD $6.7584
≥1 USD $6.7584
≥10 USD $6.10368
≥100 USD $5.819616
≥500 USD $5.053136
Inventory: 286
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.9mm

Technical

Voltage - Output (Max) 3.36V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 16A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.7V
Voltage - Input (Min) 2.8V
Output Type Adjustable
Voltage - Input (Max) 5.5V
Number of Outputs 4
Function Step-Down
JESD-30 Code R-PQCC-N26
Base Part Number LP875640
Reach Compliance Code not_compliant
Terminal Pitch 0.5mm
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Matte Tin (Sn)
Number of Terminations 26
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Automotive, AEC-Q100
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TA

Physical

Surface Mount YES
Package / Case 26-VFQFN Exposed Pad
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
