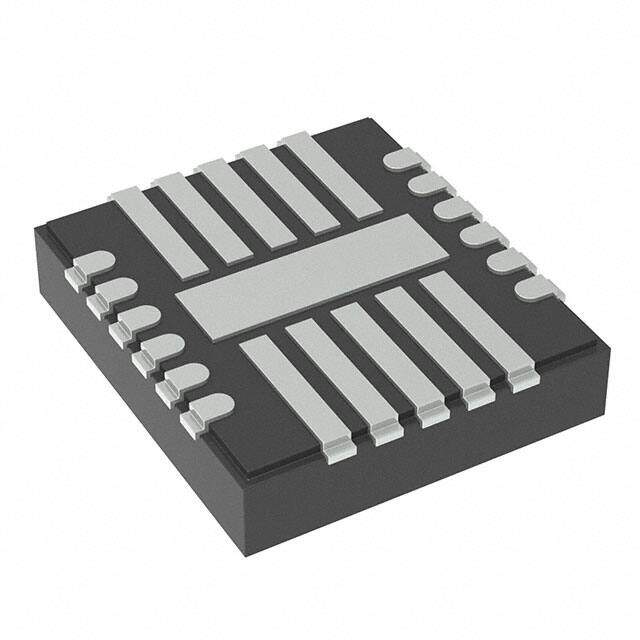

LP87521ERNFRQ1
RoHS
RoHS compliant
RoHS compliantPackage 26-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LP87521 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 3.7V 4mm 10A 2MHz
PDF
/
Buying Options
Total Price: USD $4.11
Unit Price: USD $4.110054
≥1 USD $4.110054
≥200 USD $1.591906
≥500 USD $1.591906
≥1000 USD $1.508315
Inventory: 1184
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 4.5mm
Height Seated (Max) 0.9mm
Technical
Voltage - Output (Max) 3.36V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 10A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.7V
Voltage - Input (Min) 2.8V
Output Type Adjustable
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PQCC-N26
Base Part Number LP87521
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Matte Tin (Sn)
Number of Terminations 26
Moisture Sensitivity Level (MSL) 1
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 26-VFQFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Factory Lead Time 12 Weeks
