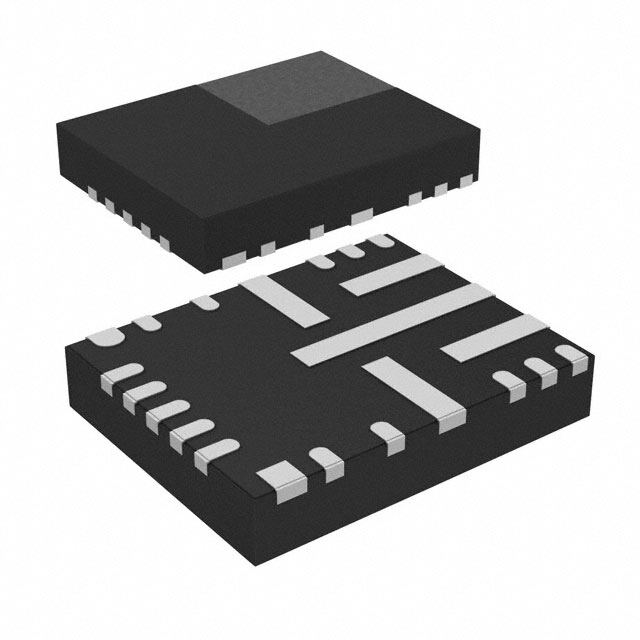

LMS3635MQRNLTQ1
RoHS
RoHS compliant
RoHS compliantPackage 22-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LMS3635 Tape & Reel (TR) Matte Tin (Sn) ACTIVE (Last Updated: 1day ago) DC to DC switching regulator 13.5V 4mm 3.5A 250kHz~500kHz
PDF
/
Buying Options
Total Price: USD $5.46
Unit Price: USD $5.456
≥1 USD $5.456
≥10 USD $4.9324
≥100 USD $4.70272
≥500 USD $4.083288
Inventory: 1121
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 850μm
Width 4mm
Length 5mm
Height 900μm
Technical
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 250kHz~500kHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 1V
Current - Output 3.5A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 13.5V
Voltage - Input (Min) 3.9V
Output Type Adjustable
Output Voltage 15V
Voltage - Input (Max) 36V
Number of Outputs 1
Function Step-Down
Base Part Number LMS3635
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 22
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Number of Pins 22
Surface Mount YES
Package / Case 22-VFQFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks
