LMR33620BDDAR
RoHS
RoHS compliant

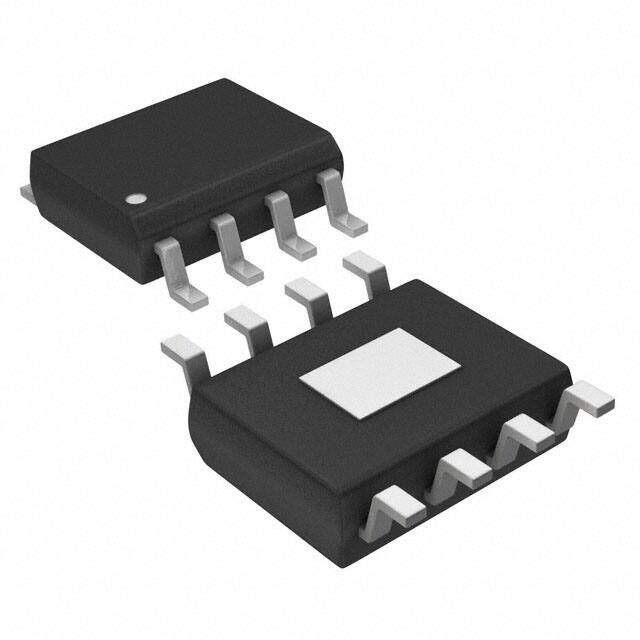

RoHS compliantPackage 8-PowerSOIC (0.154, 3.90mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LMR33620 ALSO VOUT=5VOLT;PFM TECHNIQUE ALSO USED Tape & Reel (TR) Active DC to DC switching regulator 12V 3.9mm 2A 1.4MHz
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.7864
≥1 USD $1.7864
≥10 USD $1.6016
≥100 USD $1.510784
≥500 USD $1.287352
≥1000 USD $1.208768
≥3000 USD $1.057672
Inventory: 1147
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.9mm
Length 4.9mm
Technical
Voltage - Output (Max) 24V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.4MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 1V
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 3.8V
Output Type Adjustable
Output Voltage 3.3V
Voltage - Input (Max) 36V
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PDSO-G8
Base Part Number LMR33620
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature ALSO VOUT=5 VOLT;PFM TECHNIQUE ALSO USED
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Series SIMPLE SWITCHER?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 8-PowerSOIC (0.154, 3.90mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
