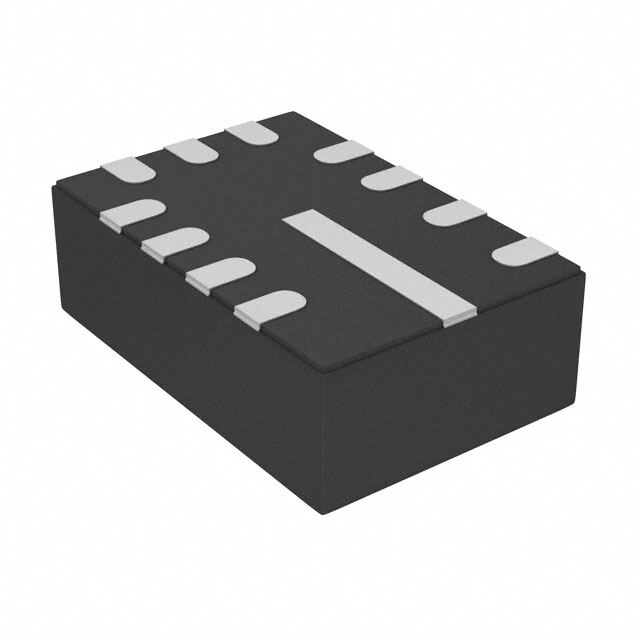

LMR33620ARNXT
RoHS
RoHS compliant
RoHS compliantPackage 12-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LMR33620 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 12V 3mm 2A 400kHz
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5344
≥1 USD $2.5344
≥10 USD $2.27304
≥100 USD $2.144384
≥500 USD $1.82688
Inventory: 1131
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 2mm
Technical
Voltage - Output (Max) 24V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 400kHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 1V
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 3.8V
Output Type Adjustable
Voltage - Input (Max) 36V
Number of Outputs 1
Function Step-Down
Base Part Number LMR33620
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SIMPLE SWITCHER?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 12-VFQFN
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Factory Lead Time 6 Weeks
