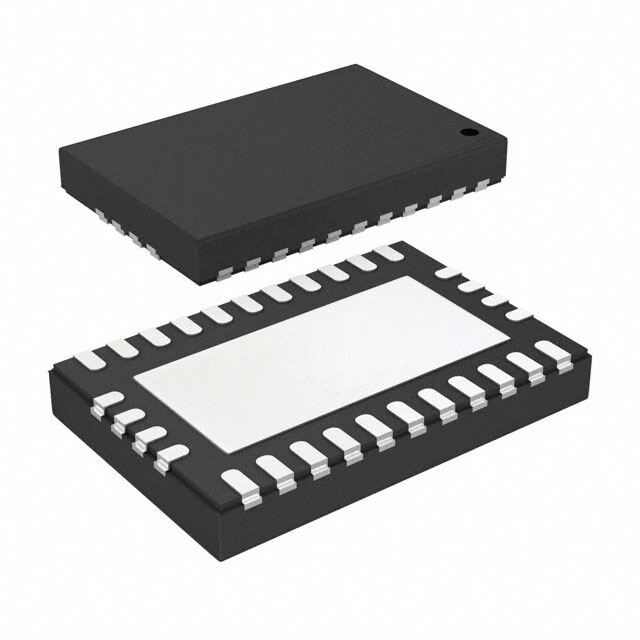

LM76002RNPR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 30-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description LM76002 Tape & Reel (TR) Matte Tin (Sn) ACTIVE (Last Updated: 3days ago) DC to DC switching regulator 24V 4mm 2.5A 300kHz~2.2MHz
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.47725
≥1 USD $1.47725
≥10 USD $1.2122
≥100 USD $1.1742
≥500 USD $1.1362
≥1000 USD $1.0982
≥1000 USD $0.98515
Inventory: 173803
Minimum: 1
-
+

Technical Details

Technical

Frequency - Switching 300kHz~2.2MHz
Control Technique PULSE FREQUENCY MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 57V
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 1V
Current - Output 2.5A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 24V
Voltage - Input (Min) 3.5V
Output Type Adjustable
Voltage - Input (Max) 60V
Number of Outputs 1
Function Step-Down
Base Part Number LM76002
Terminal Pitch 0.5mm
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Matte Tin (Sn)
Number of Terminations 30
Moisture Sensitivity Level (MSL) 2
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ

Dimensions

Height 800μm
Length 6mm
Width 4mm
Thickness 750μm

Compliance

RoHS Status ROHS3 Compliant

Physical

Number of Pins 30
Surface Mount YES
Package / Case 30-WFQFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
