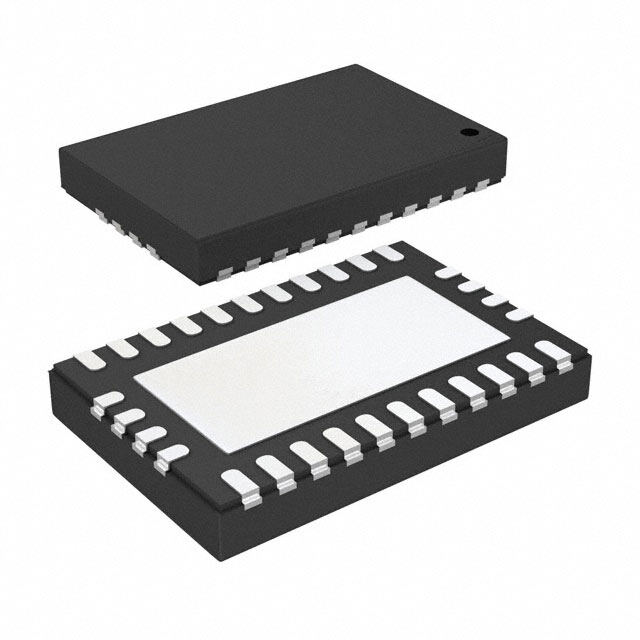

LM73606RNPR
RoHS
RoHS compliant
RoHS compliantPackage 30-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM73606 ALSO VOUT=5VOLT;PFM TECHNIQUE ALSO USED Tape & Reel (TR) Matte Tin (Sn) DC to DC switching regulator 12V 4mm 6A 350kHz~2.2MHz
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.75915
≥1 USD $3.75915
≥10 USD $3.08465
≥100 USD $2.98775
≥500 USD $2.8918
≥1000 USD $2.79585
Inventory: 28313
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Surface Mount, Wettable Flank
Package / Case 30-WFQFN Exposed Pad
Surface Mount YES
Number of Pins 30
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 30
Terminal Finish Matte Tin (Sn)
Additional Feature ALSO VOUT=5 VOLT;PFM TECHNIQUE ALSO USED
Terminal Position QUAD
Terminal Form NO LEAD
Terminal Pitch 0.5mm
Base Part Number LM73606
Function Step-Down
Number of Outputs 1
Output Voltage 3.3V
Output Type Adjustable
Voltage - Input (Min) 3.5V
Input Voltage-Nom 12V
Max Supply Voltage 36V
Min Supply Voltage 3.5V
Analog IC - Other Type SWITCHING REGULATOR
Nominal Supply Current 15μA
Output Configuration Positive
Current - Output 6A
Voltage - Output (Min/Fixed) 1V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 350kHz~2.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 34.2V
Max Duty Cycle 97.5 %
Output Voltage-Min 1V
Max Junction Temperature (Tj) 125°C
Dimensions
Height 800μm
Length 6mm
Width 4mm
Thickness 750μm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
