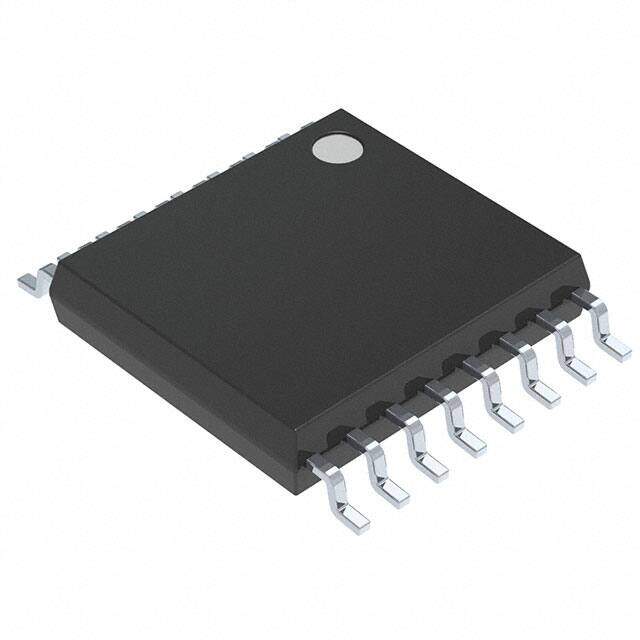

LM63635DQPWPRQ1
RoHS
RoHS compliant
RoHS compliantPackage 16-PowerTSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
PFM CONROL ALSO POSSIBLE Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) Active DC to DC switching regulator 13.5V 3.25A 250kHz~2.2MHz -40C~125C
PDF
/
Buying Options
Total Price: USD $3.66
Unit Price: USD $3.6608
≥1 USD $3.6608
≥10 USD $3.28504
≥100 USD $3.105696
≥500 USD $2.691568
≥1000 USD $2.553584
≥3000 USD $2.291309
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 16-PowerTSSOP (0.173, 4.40mm Width)
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature PFM CONROL ALSO POSSIBLE
Terminal Position DUAL
Terminal Form GULL WING
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 100V
Output Type Adjustable
Voltage - Input (Min) 6V
Input Voltage-Nom 13.5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 3.25A
Voltage - Output (Min/Fixed) 1V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 250kHz~2.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Output Voltage-Max 20V
Output Voltage-Min 1V
Compliance
RoHS Status ROHS3 Compliant
