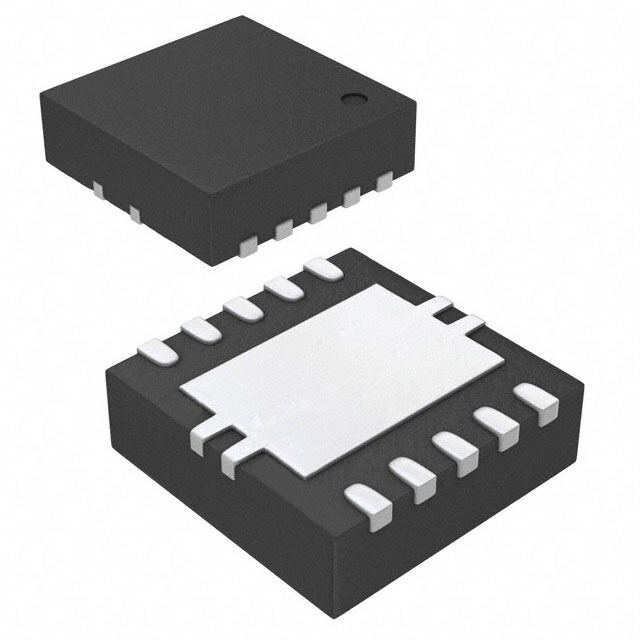

LM53600MQDSXTQ1
RoHS
RoHS compliant
RoHS compliantPackage 10-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM53600 Tape & Reel (TR) Matte Tin (Sn) ACTIVE (Last Updated: 1day ago) DC to DC switching regulator 13.5V 3mm 650mA 2.1MHz
PDF
/
Buying Options
Total Price: USD $5.02
Unit Price: USD $5.016
≥1 USD $5.016
≥10 USD $4.5012
≥100 USD $4.25568
≥500 USD $3.688168
Inventory: 1152
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-WFDFN Exposed Pad
Number of Pins 10
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 10
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Terminal Position DUAL
Terminal Form NO LEAD
Terminal Pitch 0.5mm
Base Part Number LM53600
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 36V
Output Type Adjustable
Voltage - Input (Min) 3.8V
Input Voltage-Nom 13.5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 650mA
Quiescent Current 23μA
Max Output Voltage 6V
Voltage - Output (Min/Fixed) 3.3V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 2.1MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 3.3V
Dimensions
Height 800μm
Length 3mm
Width 3mm
Thickness 750μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
