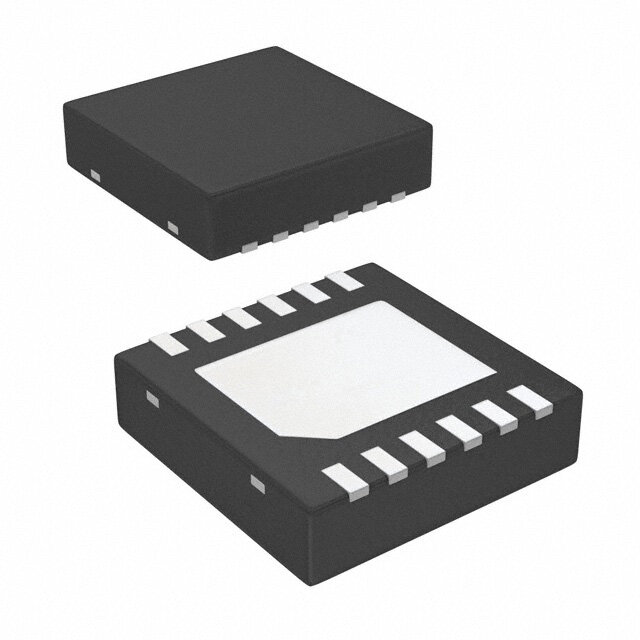

LM5160ADNTJ
RoHS
RoHS compliant
RoHS compliantPackage 12-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM5160 Tape & Reel (TR) Matte Tin (Sn) ACTIVE (Last Updated: 5days ago) DC to DC switching regulator 24V 4mm 1.5A Adj to 1MHz
PDF
/
Buying Options
Total Price: USD $1.96
Unit Price: USD $1.9624
≥1 USD $1.9624
≥10 USD $1.76616
≥100 USD $1.666368
≥500 USD $1.41988
≥1000 USD $1.3332
≥3000 USD $1.166546
Inventory: 1199
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LM5160
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 65V
Output Type Adjustable
Voltage - Input (Min) 4.5V
Input Voltage-Nom 24V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive, Isolation Capable
Current - Output 1.5A
Quiescent Current 2.3mA
Max Output Voltage 60V
Voltage - Output (Min/Fixed) 2V
Topology Buck, Flyback
Frequency - Switching Adj to 1MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 2V
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Dimensions
Height 800μm
Length 4mm
Width 4mm
Thickness 750μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Number of Pins 12
Package / Case 12-WFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
