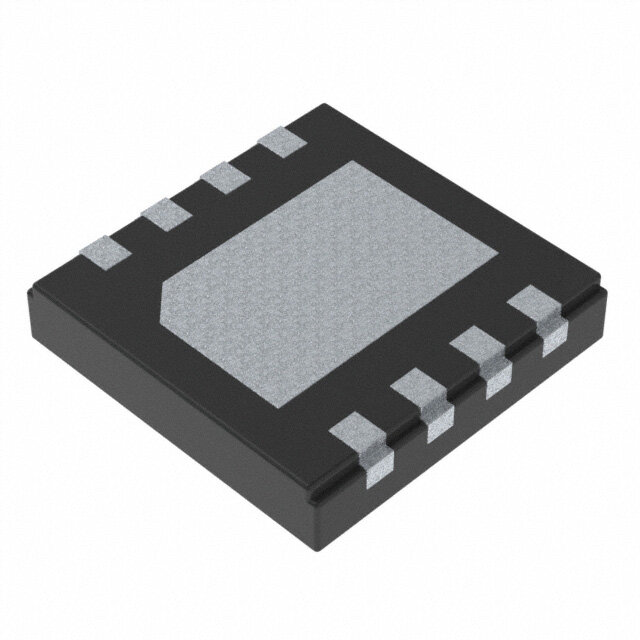

LM5008SDCX
RoHS
/
Package 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
CURRENT-MODE Non-RoHS Compliant Adjustable Positive Switching Regulator IC -40C~125C TJ 50kHz~600kHz 350mA 4mm
PDF
/
Buying Options
Total Price: USD $3.08
Unit Price: USD $3.079635
≥1 USD $3.079635
≥10 USD $2.905314
≥100 USD $2.740863
≥500 USD $2.585718
≥1000 USD $2.439356
Inventory: 1593
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Number of Pins 8
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Base Part Number LM5008
Function Step-Down
Number of Outputs 1
Efficiency 92 %
Voltage - Input (Max) 95V
Output Voltage 75V
Output Type Adjustable
Max Output Current 350mA
Voltage - Input (Min) 9.5V
Input Voltage-Nom 48V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Quiescent Current 485μA
Voltage - Output (Min/Fixed) 2.5V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 50kHz~600kHz
Control Technique HYSTERETIC CURRENT MODE
Synchronous Rectifier No
Voltage - Output (Max) 75V
Dimensions
Length 4mm
Width 4mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
