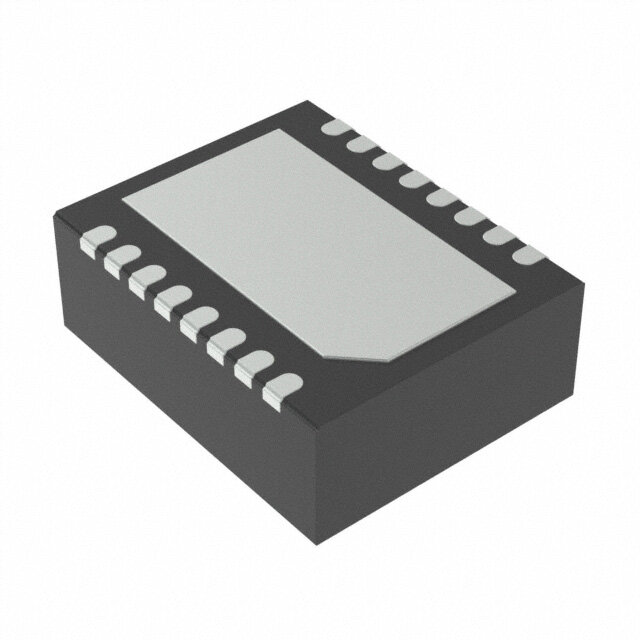

LM43602DSUT
RoHS
RoHS compliant
RoHS compliantPackage 16-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM43602 Tape & Reel (TR) Matte Tin (Sn) ACTIVE (Last Updated: 1day ago) DC to DC switching regulator 12V 4mm 2A 200kHz~2.2MHz
PDF
/
Buying Options
Total Price: USD $5.18
Unit Price: USD $5.1832
≥1 USD $5.1832
≥10 USD $4.65784
≥100 USD $4.40352
≥500 USD $3.816384
Inventory: 529
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 900μm
Width 4mm
Length 5mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 200kHz~2.2MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 1V
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 3.5V
Output Type Adjustable
Output Voltage 28V
Voltage - Input (Max) 36V
Number of Outputs 1
Function Step-Down
Base Part Number LM43602
Terminal Form NO LEAD
Terminal Position DUAL
Terminal Finish Matte Tin (Sn)
Number of Terminations 16
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SIMPLE SWITCHER?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 16
Surface Mount YES
Package / Case 16-VFDFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks
