LM3679URX-1.5/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 5-XFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
VOLTAGE-MODE ROHS3Compliant Fixed Positive DC to DC switching regulator -30C~85C TA 3MHz 630mW 350mA
PDF
/
Inventory: 2125
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount

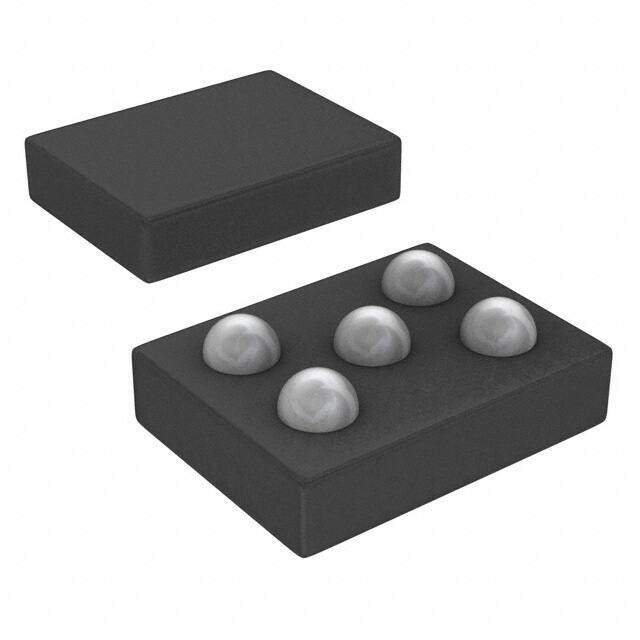

Package / Case 5-XFBGA
Number of Pins 5
Technical
Operating Temperature -30°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature CURRENT MODE CONTROL IS ALSO POSSIBLE IN PFM CONTROL TECHNIQUE
Subcategory Switching Regulator or Controllers
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Base Part Number LM3679
Function Step-Down
Number of Outputs 1
Efficiency 93 %
Output Voltage 1.5V
Output Type Fixed
Max Output Current 350mA
Operating Supply Voltage 5.5V
Voltage - Input (Min) 2.5V
Input Voltage-Nom 3.6V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Quiescent Current 1.6mA
Voltage - Output (Min/Fixed) 1.5V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 3MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Max Output Power 630mW
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
