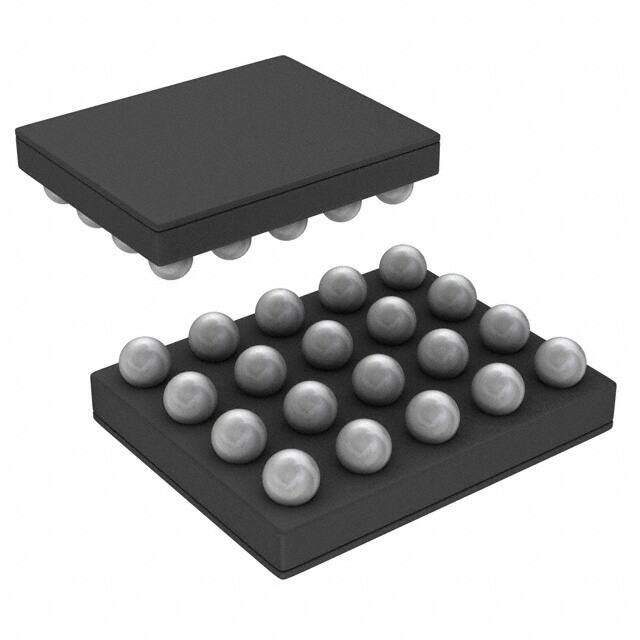

LM3370TLX-3607/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 20-UFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
VOLTAGE-MODE ROHS3Compliant Fixed Positive DC to DC switching regulator -30C~85C TA 2MHz 600mA 3mm
PDF
/
Inventory: 1467
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-UFBGA
Number of Pins 20
Technical
Operating Temperature -30°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Switching Regulator or Controllers
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.5mm
Base Part Number LM3370
Function Step-Down
Number of Outputs 2
Efficiency 90 %
Voltage - Input (Max) 5.5V
Output Voltage 1.9V
Output Type Fixed
Max Output Current 600mA
Operating Supply Voltage 5.5V
Voltage - Input (Min) 2.7V
Input Voltage-Nom 3.6V
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Output Configuration Positive
Quiescent Current 600μA
Voltage - Output (Min/Fixed) 1.5V 1.9V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Switcher Configuration PHASE-SHIFT
Dimensions
Height Seated (Max) 0.675mm
Length 3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
