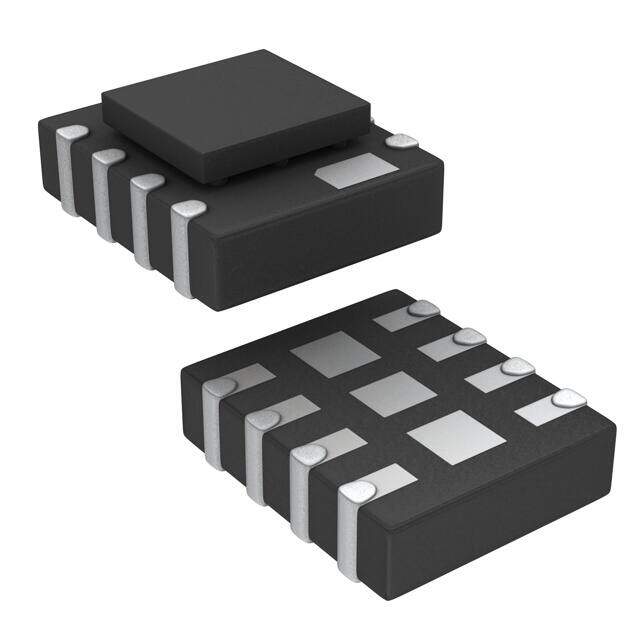

LM3218SEE/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM3218 Tape & Reel (TR) Obsolete Step-Down DC to DC switching regulator 3.6V 2.5mm 650mA 2MHz
PDF
/
Inventory: 5496
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module
Number of Pins 8
Technical
Operating Temperature -30°C~85°C TA
Packaging Tape & Reel (TR)
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
ECCN Code EAR99
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.65mm
Base Part Number LM3218
Function Step-Down
Number of Outputs 1
Efficiency 95 %
Output Voltage 3.6V
Output Type Adjustable
Max Output Current 650mA
Operating Supply Voltage 5.5V
Voltage - Input (Min) 2.7V
Input Voltage-Nom 3.6V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Max Output Voltage 3.6V
Voltage - Output (Min/Fixed) 0.8V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 800mV
Voltage - Output (Max) 3.6V
Dimensions
Length 3mm
Width 2.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
