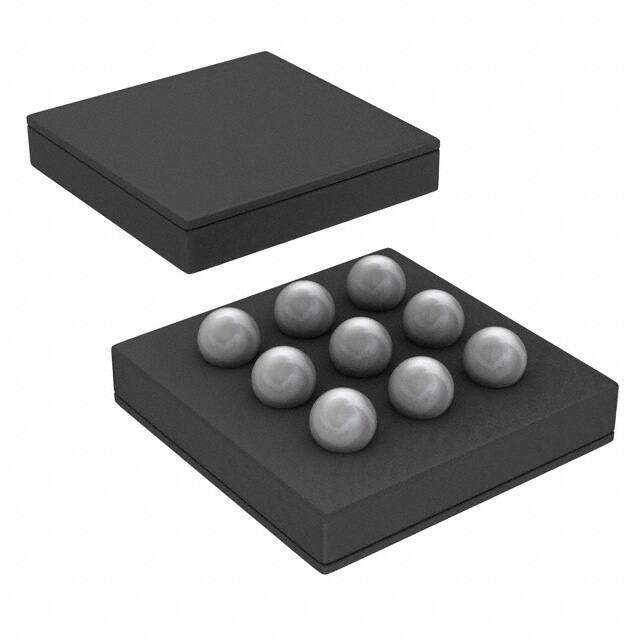

LM3207TLX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 9-WFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM3207 Tape & Reel (TR) Tin/Silver/Copper (Sn/Ag/Cu) Obsolete DC to DC switching regulator 3.6V 0.675mm 650mA 2MHz
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 1128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.675mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.7V
Operating Supply Voltage 5.5V
Max Output Current 650mA
Output Type Adjustable
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Down
Base Part Number LM3207
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Switching Regulator or Controllers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C TA
Physical
Number of Pins 9
Package / Case 9-WFBGA
Mounting Type Surface Mount
Mount Surface Mount
