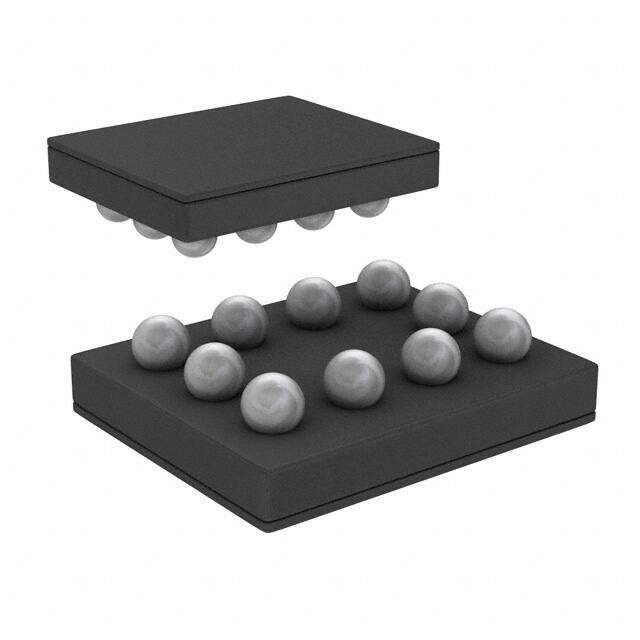

LM3200TLX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 10-WFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
CURRENT-MODE ROHS3Compliant Adjustable Positive DC to DC switching regulator -25C~85C TA 2MHz 500mA 0.675mm
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.727212
≥1 USD $0.727212
≥10 USD $0.686055
≥100 USD $0.647223
≥500 USD $0.61058
≥1000 USD $0.57602
Inventory: 1101
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.675mm
Technical
Voltage - Output (Max) 3.6V
Min Output Voltage 800mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Max Output Voltage 3.6V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.7V
Operating Supply Voltage 5.5V
Max Output Current 500mA
Output Type Adjustable
Output Voltage 3.6V
Number of Outputs 1
Function Step-Down
Base Part Number LM3200
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Other Analog ICs
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C TA
Physical
Number of Pins 10
Package / Case 10-WFBGA
Mounting Type Surface Mount
Mount Surface Mount
