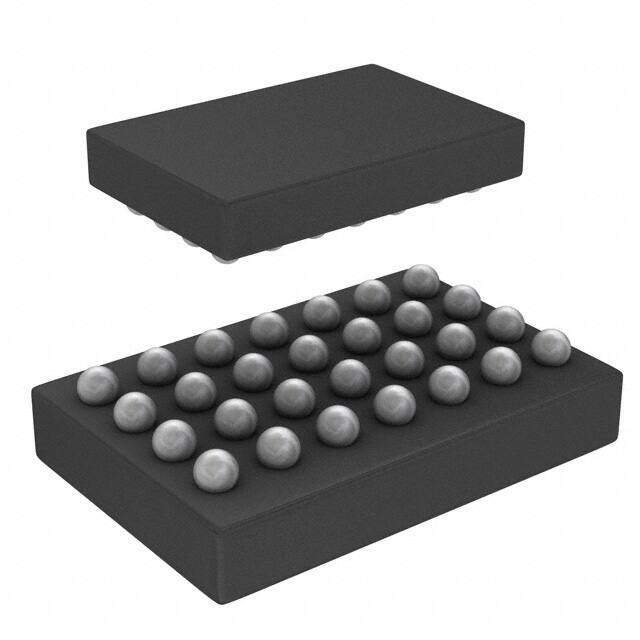

LM3102TL-1/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 28-WFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM3102 Tape & Reel (TR) Tin/Silver/Copper (Sn/Ag/Cu) ACTIVE (Last Updated: 5days ago) DC to DC switching regulator 18V 0m 2.5A Up to 1MHz
PDF
/
Inventory: 3306
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-WFBGA
Number of Pins 28
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series SIMPLE SWITCHER?
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Switching Regulator or Controllers
Technology MOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.5mm
Base Part Number LM3102
Function Step-Down
Number of Outputs 1
Efficiency 92 %
Voltage - Input (Max) 42V
Output Voltage 7V
Output Type Adjustable
Max Output Current 2.5A
Operating Supply Voltage 42V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 18V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Quiescent Current 1mA
Voltage - Output (Min/Fixed) 0.8V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching Up to 1MHz
Synchronous Rectifier Yes
Dimensions
Height 675μm
Length 0m
Width 0m
Thickness 360μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
