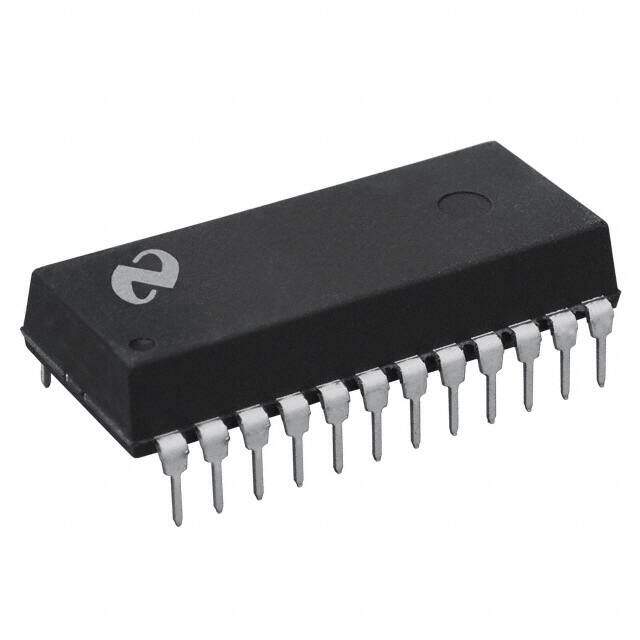

LM2825N-ADJ
RoHS
/
Package 24-DIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM2825 Tube Tin/Lead (Sn/Pb) Obsolete DC to DC switching regulator 12V 2.54mm 1A 150kHz
PDF
/
Buying Options
Total Price: USD $28.03
Unit Price: USD $28.030535
≥1 USD $28.030535
≥10 USD $26.443903
≥100 USD $24.947079
≥500 USD $23.534979
≥1000 USD $22.202815
Inventory: 1278
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Technical
Min Output Voltage 1.23V
Synchronous Rectifier No
Control Mode VOLTAGE-MODE
Topology Buck
Max Output Voltage 15V
Current - Output 1A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 4.5V
Max Supply Voltage 40V
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Max Output Current 1A
Output Type Adjustable
Output Voltage 15V
Voltage - Input (Max) 40V
Efficiency 74 %
Number of Outputs 1
Function Step-Down
Base Part Number LM2825
Frequency 150kHz
Terminal Pitch 2.54mm
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 24
Package / Case 24-DIP (0.600, 15.24mm)
Mounting Type Through Hole
Mount Through Hole
