LM2671LD-ADJ
RoHS
/

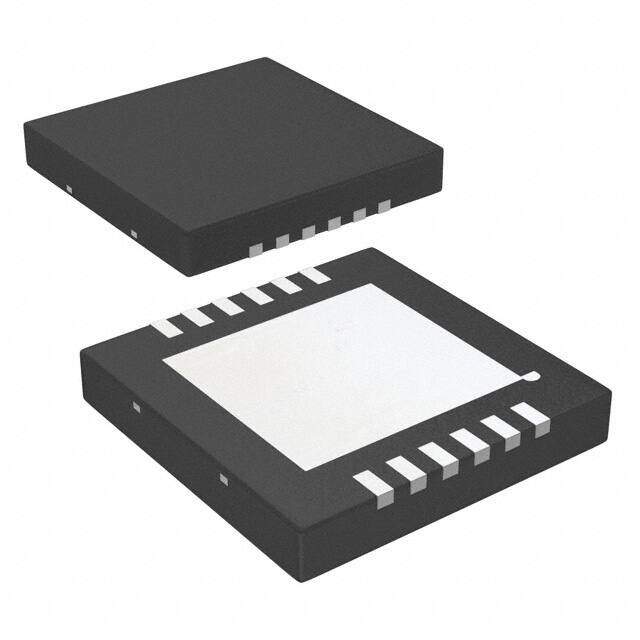

Package 16-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM2671 Tape & Reel (TR) Tin/Lead (Sn/Pb) NRND (Last Updated: 3days ago) DC to DC switching regulator 12V 5mm 500mA 260kHz
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.782177
≥1 USD $3.782177
≥10 USD $3.568091
≥100 USD $3.366119
≥500 USD $3.175589
≥1000 USD $2.995837
Inventory: 1622
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-WFDFN Exposed Pad
Number of Pins 16
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series SIMPLE SWITCHER?
JESD-609 Code e0
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Technology DMOS
Terminal Position DUAL
Peak Reflow Temperature (Cel) 235
Frequency 275kHz
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number LM2671
Function Step-Down
Number of Outputs 1
Efficiency 90 %
Voltage - Input (Max) 40V
Output Voltage 37V
Output Type Adjustable
Max Output Current 500mA
Operating Supply Voltage 40V
Voltage - Input (Min) 6.5V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Quiescent Current 2.5mA
Max Output Voltage 37V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 260kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier No
Min Output Voltage 1.21V
Dimensions
Height 800μm
Length 5mm
Width 5mm
Thickness 800μm
Compliance
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
