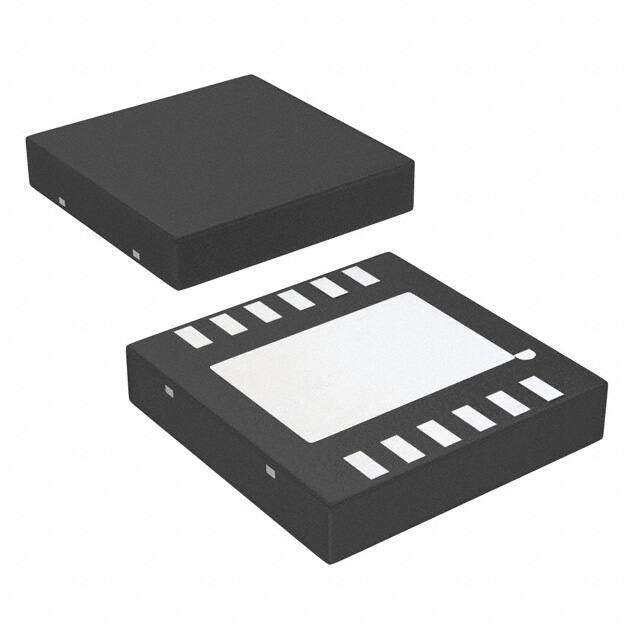

LM2623LDX
RoHS
/
Package 14-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LM2623 Tape & Reel (TR) Tin/Lead (Sn/Pb) Obsolete DC to DC switching regulator 5V 4mm 2.2A Switch 300kHz~2MHz
PDF
/
Buying Options
Total Price: USD $5.93
Unit Price: USD $5.93242
≥1 USD $5.93242
≥10 USD $5.59662
≥100 USD $5.279835
≥500 USD $4.980969
≥1000 USD $4.699031
Inventory: 1441
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.8mm
Technical
Synchronous Rectifier No
Control Technique PULSE FREQUENCY MODULATION
Input Voltage (Max) 5V
Frequency - Switching 300kHz~2MHz
Control Mode VOLTAGE-MODE
Topology Boost
Voltage - Output (Min/Fixed) 1.24V
Quiescent Current 80μA
Current - Output 2.2A Switch
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.3V
Voltage - Input (Min) 0.8V
Operating Supply Voltage 14V
Max Output Current 2A
Output Type Adjustable
Output Voltage 14V
Number of Outputs 1
Function Step-Up
Base Part Number LM2623
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 235
Terminal Position DUAL
Technology BICMOS
Subcategory Switching Regulator or Controllers
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 14
Package / Case 14-WFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
