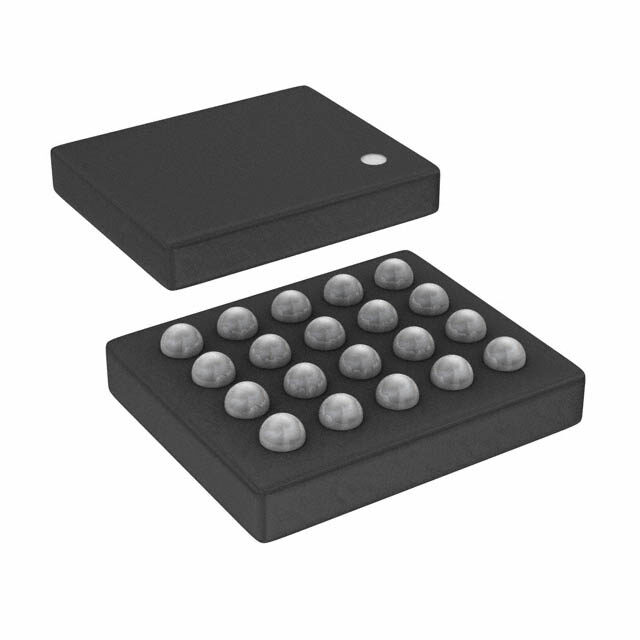

STBB2J30-R
RoHS
RoHS compliant
RoHS compliantPackage 20-UFBGA, FCBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
STBB2 Cut Tape (CT) ACTIVE (Last Updated: 7months ago) Active DC to DC switching regulator 3.3V 1.761mm 800mA 2.5MHz
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.596
≥100 USD $2.454496
≥500 USD $2.127136
≥1000 USD $2.018016
≥3000 USD $1.810776
Inventory: 1384
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-UFBGA, FCBGA
Number of Pins 20
Technical
Operating Temperature -40°C~85°C TA
Packaging Cut Tape (CT)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Base Part Number STBB2
Function Step-Up/Step-Down
Number of Outputs 1
Efficiency 90 %
Output Voltage 3.3V
Output Type Programmable
Max Output Current 800mA
Operating Supply Voltage 5.5V
Voltage - Input (Min) 2.4V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Max Output Voltage 4.5V
Voltage - Output (Min/Fixed) 3V 3.3V
Topology Buck-Boost
Frequency - Switching 2.5MHz
Synchronous Rectifier Yes
Min Output Voltage 3.3V
Nominal Output Voltage 3.3V
Dimensions
Height 370μm
Length 2.08mm
Width 1.761mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
