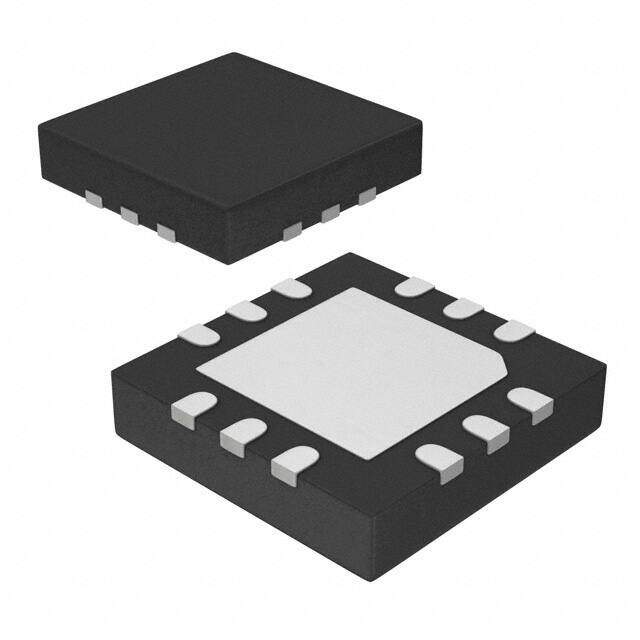

ST2S06BPQR
RoHS
RoHS compliant
RoHS compliantPackage 12-VQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ST2S06 Tape & Reel (TR) Matte Tin (Sn) - annealed ACTIVE (Last Updated: 7months ago) DC to DC switching regulator 5V 4mm 800mA 1.5MHz
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.83265
≥1 USD $4.83265
≥10 USD $3.9653
≥100 USD $3.8418
≥500 USD $3.71735
≥1000 USD $3.59385
Inventory: 1350
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 1mm
Technical
Switcher Configuration PUSH-PULL
Min Output Voltage 800mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.5MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Max Output Voltage 5.17V
Current - Output 800mA
Output Configuration Positive
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Input Voltage-Nom 5V
Voltage - Input (Min) 2.5V
Max Output Current 500mA
Output Type Adjustable
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Efficiency 90 %
Number of Outputs 2
Function Step-Down
Base Part Number ST2S06
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.8mm
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -30°C~125°C TJ
Physical
Weight 21.99923mg
Number of Pins 12
Package / Case 12-VQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 14 Weeks
Alternative Model
